LINE PRESSURE CONTROL FUNCTION [FN4A-EL]


id051701287300


Features

•  The PCM adjusts the pressure control solenoid pressure by driving the pressure control solenoid according to the accelerator pedal depressing amount, vehicle speed, ATF temperature and gear position.
•  As a result, the line pressure is controlled very accurately and closely.

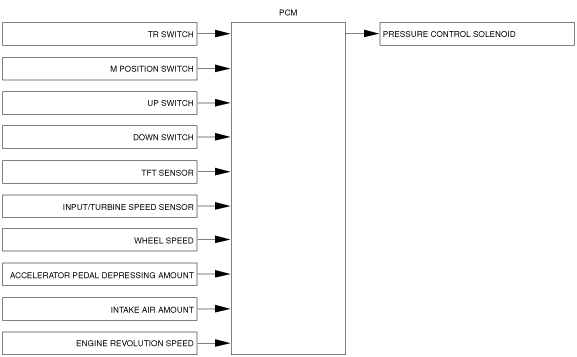

Block Diagram

am3zzn00004036
