DIRECT ELECTRIC SHIFT CONTROL FUNCTION [FN4A-EL]


id051701287500


Features

•  The PCM determines the optimum clutch engagement pressure and drives the solenoid valves based on input signals in accordance with the vehicle driving conditions including the engine torque.
•  By driving the solenoid valves, and performing the electronic control of the clutch engagement pressure directly through the PCM, minute hydraulic control, which could not be obtained by the clutch engagement pressure control with the accumulator, is obtained.

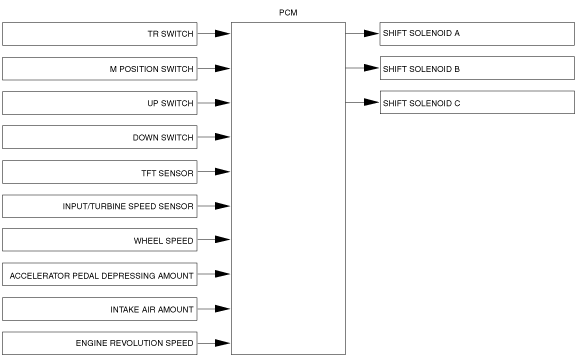

Block Diagram

am3zzn00004037
