FEEDBACK CONTROL FUNCTION [FN4A-EL]


id051701287700


Features

•  When shifting, real-time feedback correction of the clutch engagement pressure is operated by the solenoid valves so that the speed change of the turbine shaft (change of the turbine rotating speed) matches the predetermined target value.

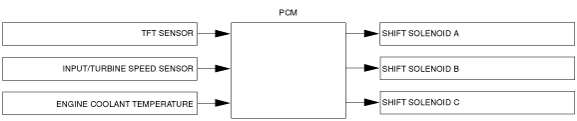

Block Diagram

am3zzn00002515
