TORQUE CONVERTER CLUTCH (TCC) CONTROL SOLENOID [FN4A-EL]

id051701361500

Purpose/Function

• The torque converter clutch (TCC) control solenoid adjusts the hydraulic pressure in the TCC control circuit based on the current demand from the TCM according to the vehicle conditions.

Construction

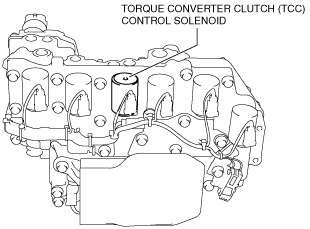

• The TCC control solenoid is installed to the solenoid control body.

• The TCC control solenoid is a normal closed-type linear solenoid.

am2zzn00002242

Operation

• Adjusts the TCC control clutch pressure by increasing/decreasing the energization current to the TCC control solenoid according to the signal from the TCM.
