• The shift position indicator light indicates the selector lever position.
Construction

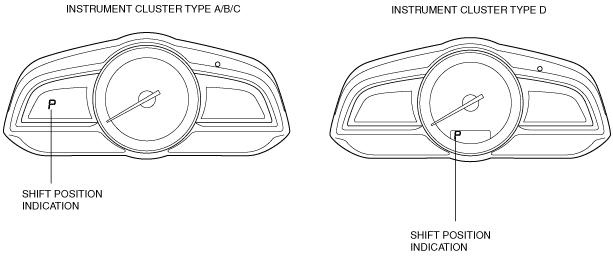

• The shift position indicator light is built into the instrument cluster.
am3zzn00006215
Operation

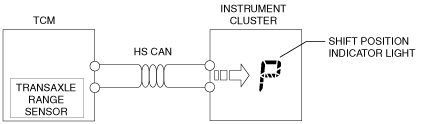

• The TCM sends a shift position indicator light illumination request signal to the instrument cluster via CAN based on the signal from the integrated transaxle range sensor signal received via CAN.
