OIL SEAL (DIFFERENTIAL) REPLACEMENT [EW6A-EL]

id0517l2118800


Transaxle Case Side

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [EW6A-EL].)

3.  Disconnect the front drive shaft (LH) from the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Remove the oil seal using a flathead screwdriver.

am2zzw00009483

5.  Using the SSTs and a hammer, install a new oil seal.

am3zzw00017580

A: 0.5 mm {0.02 in}
B: 0.8 mm {0.03 in}

6.  Coat the lip of the oil seal with ATF.

7.  Connect l the front drive shaft (LH) to the transaxle. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

8.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [EW6A-EL].)

9.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [EW6A-EL].)

10.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)


Converter Housing Side

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [EW6A-EL].)

3.  Disconnect the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

4.  Remove the oil seal using a flathead screwdriver.

am2zzw00009485

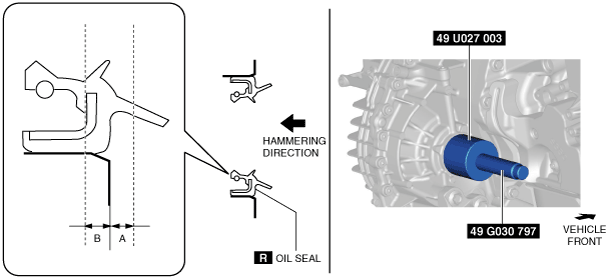

5.  Using the SSTs and a hammer, install a new oil seal.

am3zzw00017581

A: 0.5 mm {0.02 in}
B: 0.8 mm {0.03 in}

6.  Coat the lip of the oil seal with ATF.

7.  Connect the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

8.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [EW6A-EL].)

9.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [EW6A-EL].)

10.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
