TIE-ROD END REPLACEMENT

id061300801200

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove the snap pin from the tie-rod end.

am3zzw00018049

3.  Loosen the tie-rod end locknut.

am3zzw00019728

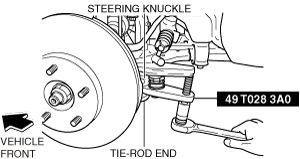

4.  Detach the tie-rod end from the steering knuckle using the SST.

am3zzw00018051

5.  Remove the locknut from the tie-rod end.

am3zzw00018052

6.  Place alignment marks as shown in the figure for proper installation.

am6zzw00009179

7.  Remove the tie-rod end.

am6zzw00009163

8.  Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

am3zzw00018053

9.  Align the alignment marks made before removing the tie-rod end, and then install a new tie-rod end to the tie rod.

am6zzw00009164

Note

•  "R" is inscribed on the right side of the tie-rod end and "L" is inscribed on the left side of the tie-rod end. Verify if the part is for the left or right side before installation because the left and right parts of the tie-rod end have different shapes.

am3zzw00019079

•  If there are no alignment marks, go to the following procedure.

10.  Adjust dimension A shown in the figure to the standard, and assemble.

am6zzw00009188

11.  Install the tie-rod end to the steering knuckle.

am3zzw00019845

12.  Install a new snap pin to the tie-rod end.

13.  Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

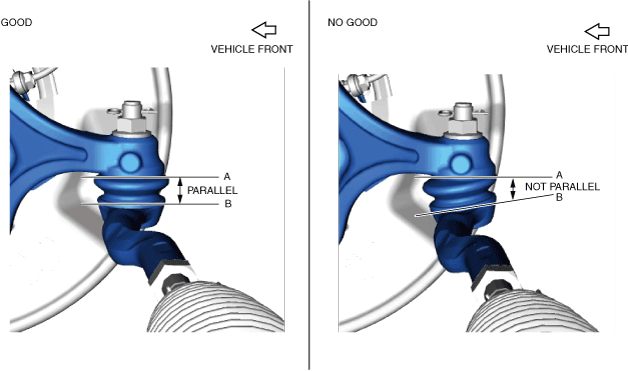

14.  Verify that A and B shown in the figure are parallel while the vehicle is on the ground.

am3zzw00021075

Caution

•  Install the tie-rod end to the correct position. Otherwise, it could cause cracks on the tie-rod end boot.

•  If the installation position is not correct, perform the adjustment using the following procedure.

1.  Adjust the tie-rod end by rotating it so that it is at the correct position.

am2zzw00015169

15.  After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
