STEERING GEAR AND LINKAGE ASSEMBLY

id061300802100

Caution
•  To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

1.  Assemble in the order shown in the figure.

2.  Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

L.H.D.

am6zzw00009182

R.H.D.

am6zzw00009183

1
Steering gear
2
Mounting rubber
(See Mounting Rubber Assembly Note.)
3
Tie rod
(See Tie Rod Assembly Note .)
4
Boot
5
Boot band
(See Boot Band Assembly Note .)
6
Boot clamp
7
Locknut
8
Tie-rod end
(See Tie-rod End Assembly Note.)
9
Dust cover


Mounting Rubber Assembly Note

1.  Apply soapy water to the rubber part of the mounting rubber.

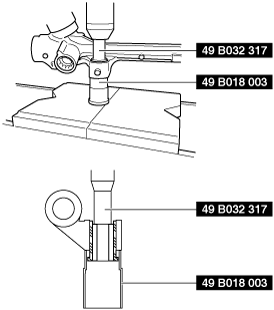

2.  Press fit the ear portion of the mounting rubber (lower side) using the SSTs until it projects from the gear housing as shown in the figure.

am6zzw00009184

Note
•  Press fit the ear portion of the mounting rubber (upper side) until it partially enters the gear housing.

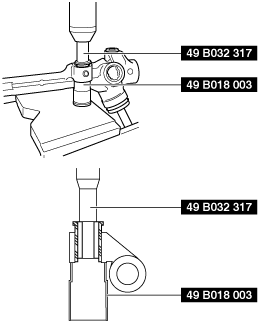

3.  Reverse the gear housing, then press fit the mounting rubber using the SSTs and the press until the mounting rubber ear portion (upper side) contacts the gear housing.

am6zzw00009185

4.  Verify that both mounting rubber ears are correctly assembled with no gaps between them and the gear housing as shown in the figure.

am6zzw00009186

•  If there are gaps, readjust their positions using the SSTs and the press.


Tie Rod Assembly Note

1.  Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and measure dimensions A and L shown in the figure.

adejjw00015170

2.  Tighten the tie rod after calculating the tightening torque using the following formula.

am3zzw00018068

Tightening Torque
69—98 N·m {7.1—9.9 kgf·m, 51—72 ft·lbf}

Calculation formula
T×(L/A)
T: Tightening torque (69—98 N·m {7.1—9.9 kgf·m, 51—72 ft·lbf})
L: Torque wrench effective length
A: Length from center of tie rod to grip

Boot Band Assembly Note

1.  Assemble the boot band to the boot.

2.  Crimp the boot band using the SST.

ac5wzw00001046

3.  Verify that the crimping clearance A is within the specification.

Specification
2.5—3.0 mm {0.10—0.11 in}
•  If crimping clearance A exceeds the specification, reduce SST clearance, and crimp the boot band again.
•  If crimping clearance A is less than the specification, increase SST clearance, and crimp a new boot band.

4.  Rotate the by hand and verify that it is securely installed to the boot band.


Tie-rod End Assembly Note

1.  Align the alignment marks made before removal and assemble the tie-rod end to the tie rod.

am6zzw00009164

Note
•  When newly replacing a tie-rod end, place alignment marks on the new part in the same position as the remove tie-rod end.
am3zzw00018069
•  "R" is inscribed on the right side of the tie-rod end and "L" is inscribed on the left side of the tie-rod end. Verify if the part is for the left or right side before installation because the left and right parts of the tie-rod end have different shapes.
am3zzw00019091
•  If there are no alignment marks, go to the next step.

2.  Adjust dimension A shown in the figure to the standard, then assemble the tie-rod end.

am6zzw00009188

Standard
8.4—21.4 mm {0.34—0.84 in}
