DTC B1A61:11, B1A61:13 [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)]

id0702k2816800

With Dual Type Climate Control Unit

System malfunction location	•  B1A61:11: Cabin temperature sensor circuit short to ground •  B1A61:13: Cabin temperature sensor circuit open
Detection condition	•  Malfunction in wiring harness between cabin temperature sensor and climate control unit
Fail-safe function	Malfunction determined when ignition switched ON •  Cabin temperature sensor input value is fixed at the value right before the malfunction. Malfunction already exists when ignition switched ON •  Cabin temperature sensor input value is fixed at 25 °C {77 °F}.

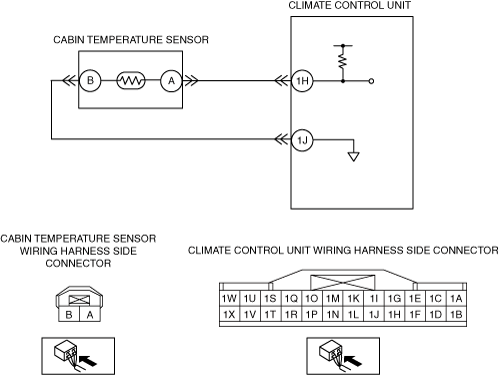

Possible cause	•  Connector or terminal malfunction •  Cabin temperature sensor malfunction •  Open circuit in wiring harness between the following terminals: ―  Climate control unit terminal 1H—cabin temperature sensor terminal A ―  Climate control unit terminal 1J—cabin temperature sensor terminal B •  Short to ground in wiring harness between the following terminals: ―  Climate control unit terminal 1H—cabin temperature sensor terminal A •  Climate control unit malfunction

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	INSPECT CABIN TEMPERATURE SENSOR CONNECTOR •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) •  Disconnect the cabin temperature sensor connector. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to Step 6.
2	INSPECT CABIN TEMPERATURE SENSOR •  Inspect the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) •  Is it normal?	Yes	Go to the next step.
		No	Replace the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to Step 6.
3	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT •  Disconnect the climate control unit connector. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect for continuity between the following terminals (wiring harness-side): ―  Climate control unit terminal 1H—cabin temperature sensor terminal A ―  Climate control unit terminal 1J—cabin temperature sensor terminal B •  Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Go to Step 6.
4	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR SHORT TO GROUND •  Inspect for continuity between the following terminal (wiring harness-side) and body ground: ―  Climate control unit terminal 1H •  Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. Go to Step 6.
		No	Go to the next step.
5	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to the next step.
6	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN •  Reconnect the disconnected connectors. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) •  Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. •  Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
		No	DTC troubleshooting completed.

With Single Type Climate Control Unit

System malfunction location	•  B1A61:11: Cabin temperature sensor circuit short to ground •  B1A61:13: Cabin temperature sensor circuit open
Detection condition	•  Malfunction in wiring harness between cabin temperature sensor and climate control unit
Fail-safe function	Malfunction determined when ignition switched ON •  Cabin temperature sensor input value is fixed at 25 °C {77 °F}. Malfunction already exists when ignition switched ON •  Cabin temperature sensor input value is fixed at the value right before the malfunction.
Possible cause	•  Connector or terminal malfunction •  Cabin temperature sensor malfunction •  Open circuit in wiring harness between the following terminals: ―  Climate control unit terminal F—cabin temperature sensor terminal A ―  Climate control unit terminal E—cabin temperature sensor terminal B •  Short to ground in wiring harness between the following terminals: ―  Climate control unit terminal F—cabin temperature sensor terminal A •  Climate control unit malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	INSPECT CABIN TEMPERATURE SENSOR CONNECTOR •  Switch the ignition off. •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) •  Disconnect the cabin temperature sensor connector. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to Step 6.
2	INSPECT CABIN TEMPERATURE SENSOR •  Inspect the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) •  Is it normal?	Yes	Go to the next step.
		No	Replace the cabin temperature sensor. (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to Step 6.
3	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT •  Disconnect the climate control unit connector. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) •  Inspect for continuity between the following terminals (wiring harness-side): ―  Climate control unit terminal F—cabin temperature sensor terminal A ―  Climate control unit terminal E—cabin temperature sensor terminal B •  Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Go to Step 6.
4	INSPECT CABIN TEMPERATURE SENSOR CIRCUIT FOR SHORT TO GROUND •  Inspect for continuity between the following terminal (wiring harness-side) and body ground: ―  Climate control unit terminal F •  Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between climate control unit terminal and cabin temperature sensor terminal. If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to ground. Go to Step 6.
		No	Go to the next step.
5	VERIFY CLIMATE CONTROL UNIT CONNECTOR CONDITION •  Inspect the connector and terminals (corrosion, damage, pin disconnection). •  Are the connector and terminals normal?	Yes	Go to the next step.
		No	Repair/replace the connector or terminal. After repair procedure, go to the next step.
6	VERIFY THAT SAME DTC IS NOT OUTPUT AGAIN •  Reconnect the disconnected connectors. •  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) •  Clear the DTC from the climate control unit memory using the M-MDS. (See CLEARING DTC [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Perform the DTC inspection for the climate control unit using the M-MDS. (See DTC DISPLAY [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].) •  Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) Go to the next step.
		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT •  Verify other DTCs displayed. •  Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)].)
		No	DTC troubleshooting completed.
