•  The evaporator circulates low temperature, low pressure gaseous refrigerant inside the evaporator.

•  The evaporator consists of the tube which passes refrigerant, and the heat radiation fin.

am3zzn00005895

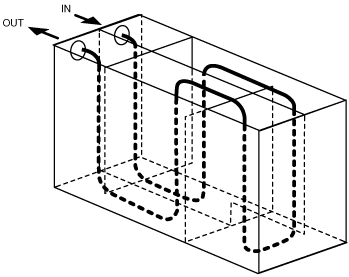

•  The cooling medium flow pattern shown in the figure has been adopted for the evaporator.

am3uun00002795

•  For the evaporator operation, refer to the [REFRIGERANT SYSTEM]. (See REFRIGERANT SYSTEM.)

•  Not applicable
