•  The condenser cools the high-temperature, highly pressurized refrigerant.

•  The condenser cools the high-temperature, highly pressurized gaseous refrigerant compressed by the A/C compressor using the outside air, and changes it to liquid refrigerant.

•  The condenser is installed to the front of the radiator.

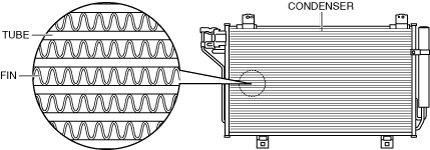

•  The condenser consists of the tube which passes refrigerant, and the heat radiation fin.

am3zzn00005308

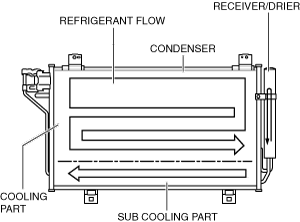

•  A sub-cooling condenser has been adopted.

am3zzn00005309

•  The sub-cooling condenser is integrated with the multi-flow condenser and the receiver/drier.

•  The sub-cooling condenser separates the refrigerant, cooled once by the condenser, into vapor and liquid using the receiver/drier, and by returning it to the sub-cooling part of the condenser again to cool.

•  As a result, liquefaction of the refrigerant is promoted and cooling performance is improved.

•  For the condenser operation, refer to the [REFRIGERANT SYSTEM]. (See REFRIGERANT SYSTEM.)

•  Not applicable
