REFRIGERANT LINE

id071100002400

Purpose

• The system piping connects each related part of the refrigerant system.

Construction

• Block-type piping has been adopted to the pipe connection, improving the efficiency of piping related servicing.

• The pipes in the piping system consist of the following parts:

― Cooler hose (HI)

― Cooler hose (LO)

― Cooler pipe

• The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).

• A high-pressure charging valve is located on the cooler hose (HI) and a low-pressure charging valve is located on the cooler hose (LO).

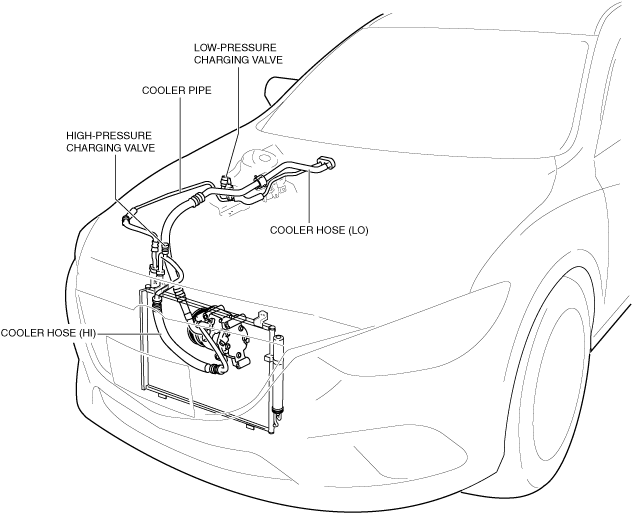

L.H.D. (SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am3zzn00006527

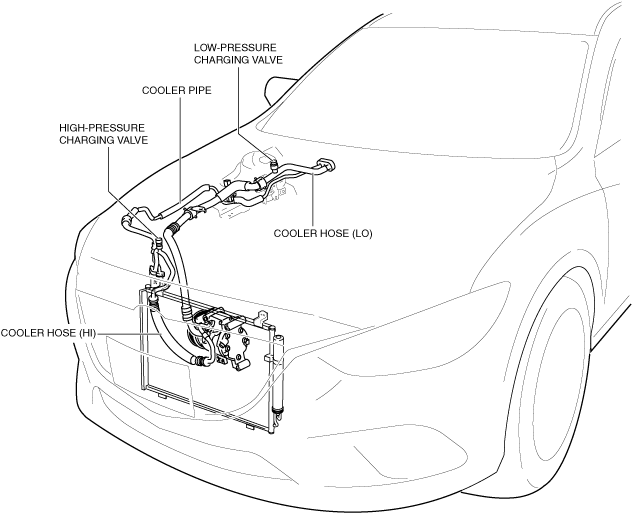

L.H.D. (SKYACTIV-D 1.5, SKYACTIV-D 2.2)

am3zzn00006528

L.H.D. (MZR 1.6)

am3zzn00006529

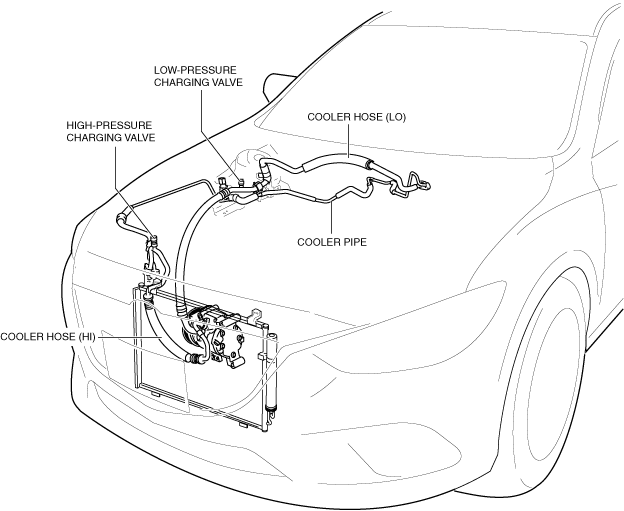

R.H.D. (SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am3zzn00005311

R.H.D. (SKYACTIV-D 1.5, SKYACTIV-D 2.2)

am3zzn00005312

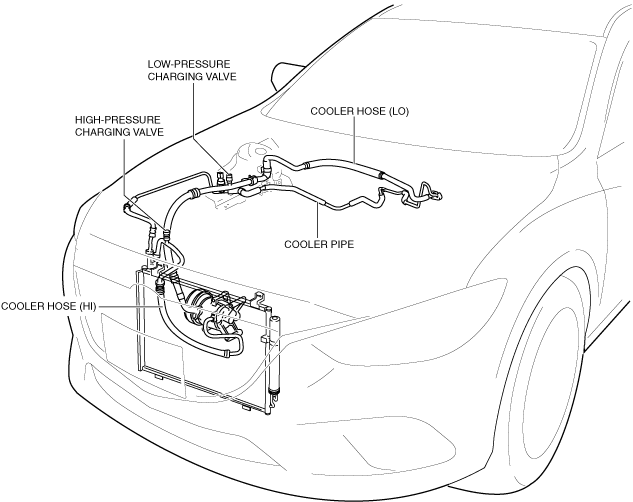

R.H.D. (MZR 1.6)

am3zzn00005313

Fail-safe

• Not applicable
