BLOWER UNIT DISASSEMBLY/ASSEMBLY
id071100800600
L.H.D. (With 8 Screws)

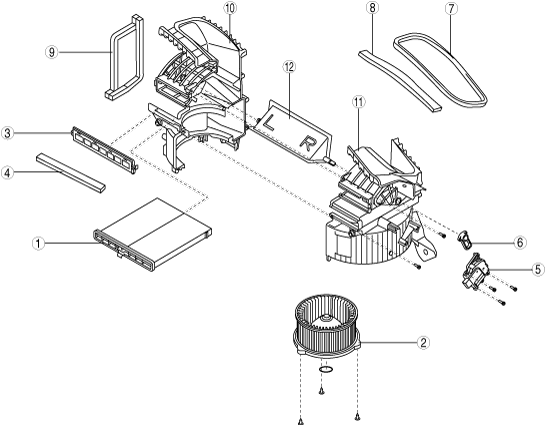

1. Disassemble in the order indicated in the table.
am3zzw00019884
|
|
1
|
Air filter
|
|
2
|
Blower motor
|
|
3
|
Cover
|
|
4
|
Polyurethane A (SKYACTIV-D 1.5,SKYACTIV-D 2.2)
|
|
5
|
Air intake actuator
|
|
6
|
Air intake link
|
|
7
|
Polyurethane B
|
|
8
|
Polyurethane C (SKYACTIV-D 1.5,SKYACTIV-D 2.2)
|
|
9
|
Polyurethane D
|
|
10
|
Blower case A
|
|
11
|
Blower case B
|
|
12
|
Air intake door
|
2. Assemble in the reverse order of disassembly.
L.H.D. (With 12 Screws)
1. Disassemble in the order indicated in the table.
am3zzw00019913
|
|
1
|
Air filter
|
|
2
|
Blower motor
|
|
3
|
Cover
|
|
4
|
Polyurethane A (SKYACTIV-D 1.5)
|
|
5
|
Air intake actuator
|
|
6
|
Air intake link
|
|
7
|
Polyurethane B
|
|
8
|
Polyurethane C (SKYACTIV-D 1.5)
|
|
9
|
Polyurethane D
|
|
10
|
Blower case A
|
|
11
|
Blower case B
|
|
12
|
Air intake door
|
2. Assemble in the reverse order of disassembly.
R.H.D.
1. Disassemble in the order indicated in the table.
am3zzw00015101
|
|
1
|
Air filter
|
|
2
|
Blower motor
|
|
3
|
Cover
|
|
4
|
Polyurethane A (SKYACTIV-D 1.5,SKYACTIV-D 2.2)
|
|
5
|
Air intake actuator
|
|
6
|
Air intake link
|
|
7
|
Polyurethane B
|
|
8
|
Polyurethane C (SKYACTIV-D 1.5,SKYACTIV-D 2.2)
|
|
9
|
Polyurethane D
|
|
10
|
Blower case A
|
|
11
|
Blower case B
|
|
12
|
Air intake door
|
2. Assemble in the reverse order of disassembly.
