HEATER HOSE REMOVAL/INSTALLATION [MZR 1.6]

id0711008051k3

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 1.6].)

3.  Remove the clips.

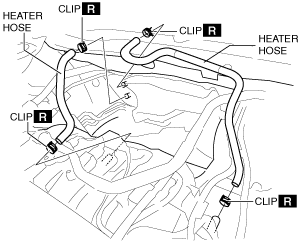

am3zzw00015139

4.  Remove the heater hose.

5.  Install in the reverse order of the removal.

6.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 1.6].)

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 1.6].)

3.  Remove the clips.

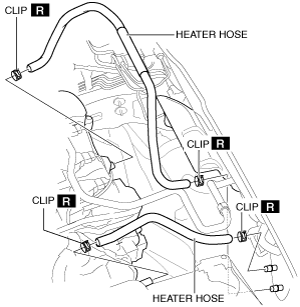

am3zzw00015993

4.  Remove the heater hose.

5.  Install in the reverse order of the removal.

6.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 1.6].)
