HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0711008051k5

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the clips.

am6zzw00010651

4.  Remove the heater hose.

5.  Install in the reverse order of the removal.

6.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove the nut from underside of vehicle.

ac5wzw00001947

5.  Remove the nut from top side of vehicle.

am6zzw00011159

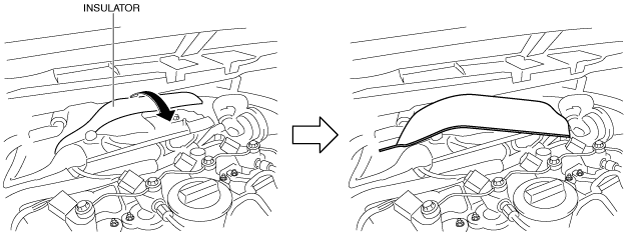

6.  Remove the insulator as shown in the figure.

am6zzw00011160

7.  Disconnect the connector.

am6zzw00012965

8.  Remove the fastener.

9.  Remove the bolts.

10.  Detach the fastener

11.  Set the PCM out of the way.

am6zzw00010654

12.  Remove the nut.

am6zzw00010655

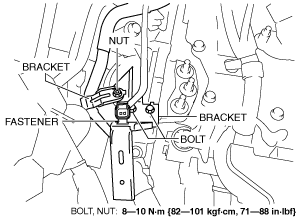

13.  Remove the nut.

am6zzw00012966

14.  Remove the bolt.

15.  Remove the bracket.

16.  Set the PCM out of the way.

17.  Set the cooler hose (LO) out of the way.

am6zzw00010658

Caution

•  When setting the cooler hose (LO), only bend the flexible hose part. If force is applied to areas other than the flexible hose, the pipe will bend and could be damaged.

18.  Remove the clips.

am6zzw00012967

19.  Remove the heater hose.

20.  Install in the reverse order of the removal.

21.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)
