•  The evaporator temperature sensor converts the airflow temperature passing through the detected evaporator to an electrical signal.

•  A thermistor-type evaporator temperature sensor has been adopted.

am3zzn00005341

•  A fin-thermo-type sensor has been adopted to the sensor area of the evaporator temperature sensor which inserts between the evaporator fins.

•  The evaporator temperature sensor is located on the A/C unit.

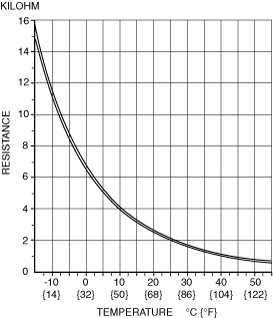

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and increases if the temperature decreases.

•  Not applicable
