SWITCHING OPERATION FOR MAXIMUM i-stop (ENGINE-STOP CONTROL) OPERATION TIME RESTRICTION [FULL-AUTO AIR CONDITIONER]
id0740a1808500
-
Note
-
• The maximum engine-stop operation time information is retained even after the ignition is switched off.
• If the negative battery cable is disconnected, the system is restored to the initial maximum engine-stop operation time (normal time).
Air Conditioner Priority Control
-
Note
-
• i-stop (engine stop control) is controlled to so that the air conditioner operation takes priority.

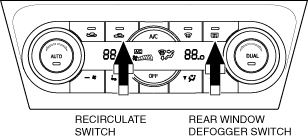

1. Switch the ignition ON (engine off or on) with the following switches pressed at the same time.
-
― Rear window defogger switch
2. Keep pressing the switch for approx. 2 s.
• When the setting is completed, the following indicators flash 5 times.
-
― Setting is enabled: recirculate switch indicator light
― Setting is disabled: rear window defogger switch light
Switching Operation For Maximum I-stop (Engine-stop Control) Operation Time Restriction
-
Note
-
• Sudden fogging of the windows can be prevented by switching the period of time in which the engine is stopped (i-stop) to a shorter time setting.

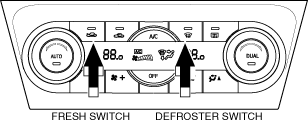

1. Switch the ignition ON (engine off or on) with the following switches pressed at the same time.
-
― Defroster switch
2. Keep pressing the switch for approx. 2 s.
• When the setting is completed, the following indicators flash 5 times.
-
― Setting is enabled: fresh switch indicator light
― Setting is disabled: defroster switch indicator light
