MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER]
id0740a2005000
Outline

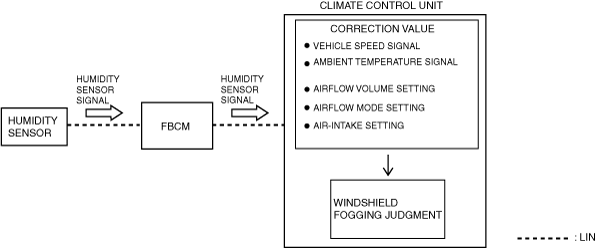

Function
am3zzn00005352
|
Airflow volume control
Air intake control
A/C compressor control

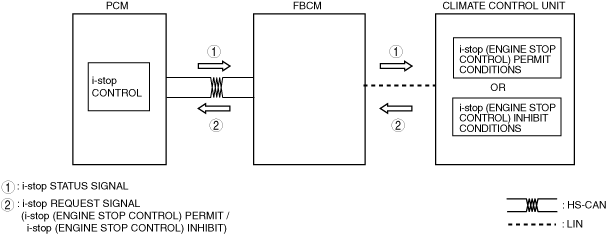

Air conditioner i-stop control (With i-stop)
am3zzn00005353
|
Construction

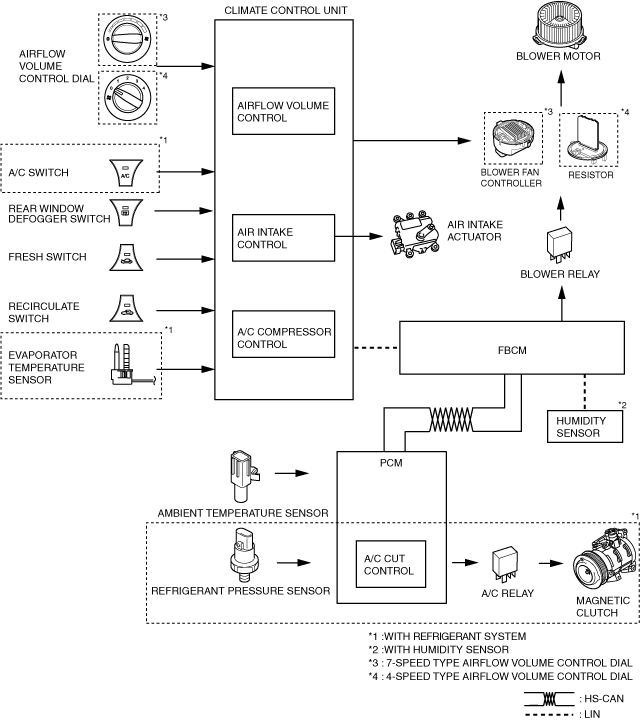

Block diagram
am3zzn00005354
|
System Wiring Diagram
7-speed type airflow volume control dial
am3zzn00005355
|

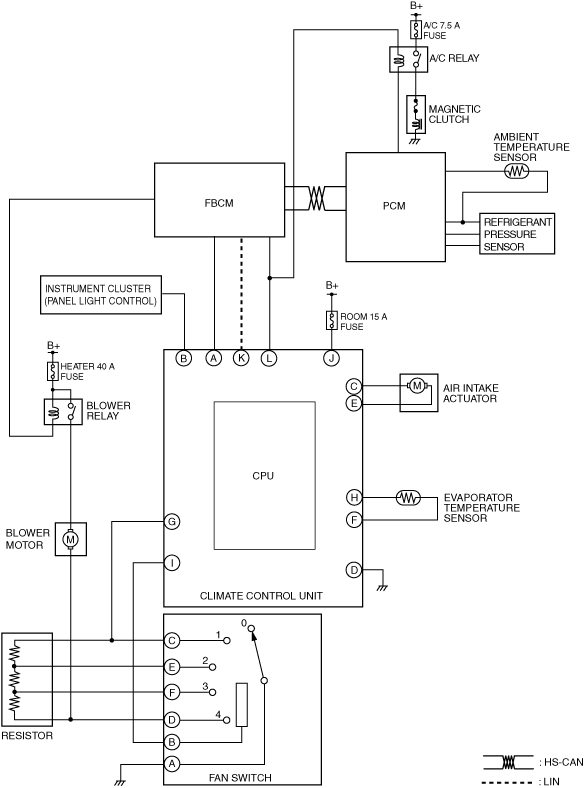

4-speed type airflow volume control dial
am3zzn00006534
|

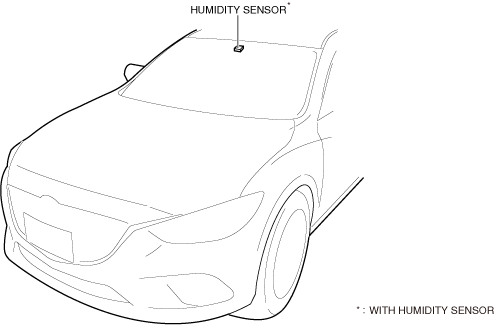

Structural view
am3zzn00005356
|
am3zzn00005357
|
Operation

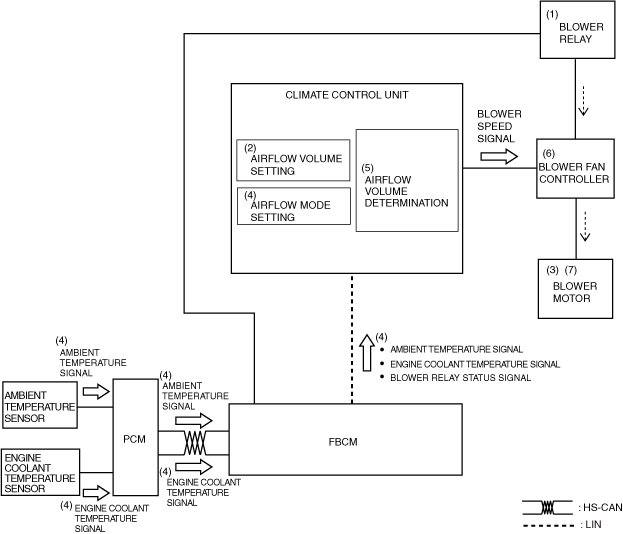

Airflow volume control (7-speed type airflow volume control dial)
1. When the ignition is switched ON (engine off or on), the front body control module (FBCM) turns the blower relay on (1).
2. When the airflow volume setting on the climate control unit is turned on (2), the blower motor (3) rotates.
3. The climate control unit performs airflow volume determination (5) based on the airflow volume setting and the signals from each sensor (4).
4. Based on the result of the airflow volume determination and correction, the climate control unit control the blower fan controller (6) and changes the airflow volume (blower motor applied voltage).
5. The rotation speed of the blower motor (7) changes according to the applied voltage from the blower fan controller.
am3zzn00005358
|

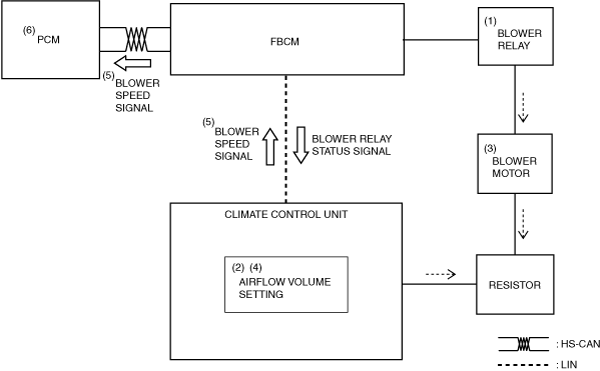

Airflow volume control (4-speed type airflow volume control dial)
1. When the ignition is switched ON (engine off or on), the front body control module (FBCM) turns the blower relay on (1).
2. When the airflow volume setting on the climate control unit is turned on (2), the blower motor (3) rotates.
3. When a 3-speed or more setting on the airflow volume setting (4) is detected, the climate control unit sends a blower speed signal (5) to the PCM (6).
4. The PCM controls the generator voltage according to electrical load conditions based on the blower speed signal from the climate control unit.
am3zzn00006535
|

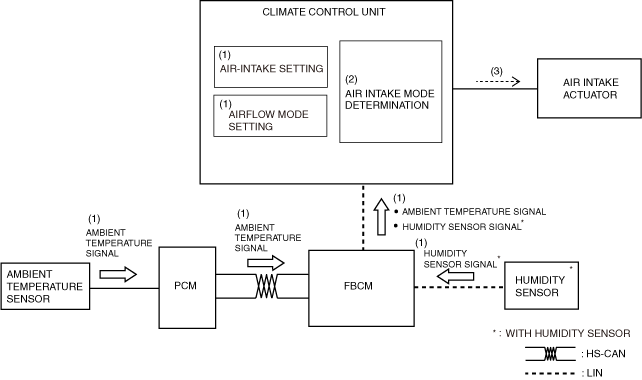

Air intake control (potentiometer type air intake actuator)
1. The climate control unit performs air intake mode determination (2) based on the signals (1) from the air intake setting and the vehicle conditions.
2. The climate control unit drives the air intake actuator (3) according to the result of the air intake mode determination and corrections.
am3zzn00005359
|
3. The climate control unit detects the current air intake actuator opening angle based on the potentiometer voltage (4).
4. The climate control unit compares (5) the target actuator voltage value with the voltage from the potentiometer.
5. When the potentiometer voltage value differs from the target actuator voltage value, the climate control unit drives (6) the air intake actuator motor.
6. When the potentiometer voltage value matches (7) the target actuator voltage value, the climate control unit stops (8) the air intake actuator motor.
am3zzn00005360
|

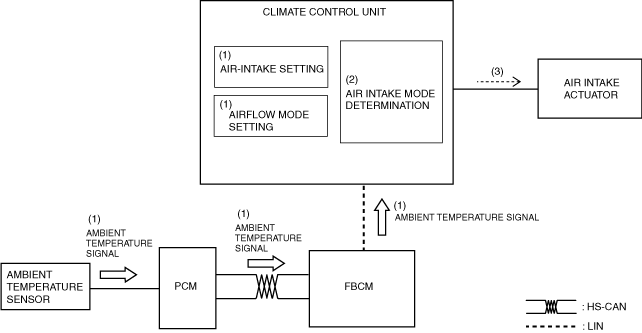

Air intake control (mechanical lock type air intake actuator)
1. The climate control unit performs air intake mode determination (2) based on the signals (1) from the air intake setting and the vehicle conditions.
2. The climate control unit drives the air intake actuator (3) according to the result of the air intake mode determination and corrections.
am3zzn00006189
|
3. When the air intake actuator moves to FRESH or REC, the motor locks (4).
4. When the motor locks and is under excessive load, the current value flowing from the climate control unit increases more than the specification (lock current).
5. When the lock current (5) is detected, the climate control unit stops the motor drive signal (6) to the air intake actuator.
am3zzn00006190
|

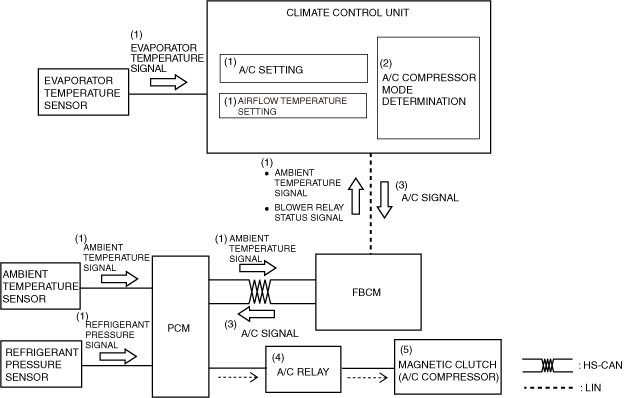

A/C compressor control
1. The climate control unit performs A/C compressor mode determination (2) based on the signals (1) from each sensor which change according to A/C setting and the vehicle conditions.
2. The climate control unit sends (3) the A/C signal to the PCM according to the result of the A/C compressor mode determination and corrections.
3. The PCM turns the A/C relay on (4) based on the signals from each sensor which change according to the A/C signal and the vehicle conditions.
4. When the A/C relay turns on, the magnetic clutch turns on (5).
am3zzn00005361
|
Air conditioner i-stop control (With i-stop)
i-stop (engine stop control) inhibit conditions
No. |
Item |
Vehicle condition |
---|---|---|
1
|
• Blower motor operation status
• Airflow mode
|
• Blower motor is ON
• Airflow mode during defrost
|
2
|
Airflow volume control dial status
|
Airflow volume control dial: 7th
|
3
|
Ambient temperature
|
Ambient temperature is -10 °C {14 °F} or below, or 50 °C {122 °F} or more
|
4
|
Engine coolant temperature
|
Engine coolant temperature does not meet the i-stop permit conditions (Comfortable cabin temperature control not performed)
|
5
|
Evaporator temperature
|
Evaporator temperature does not meet the i-stop permit conditions (Comfortable cabin temperature control not performed)
|
