CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]
id0740a2802000
L.H.D.
1. Disassemble in the order indicated in the figure.
am3zzw00019937
|
|
1
|
Dial
|
|
2
|
Airflow mode wire
(See Wire removal note.)
|
|
3
|
Air mix wire
(See Wire removal note.)
|
|
4
|
Fan switch (with 4-speed type airflow volume control dial)
(See Fan switch removal note.)
|
|
5
|
Climate control unit
|
2. Assemble in the reverse order of disassembly.
Wire removal note
1. Remove in the order indicated in the figure.
am3zzw00019938
|
Fan switch removal note
1. Remove the fan switch dial.

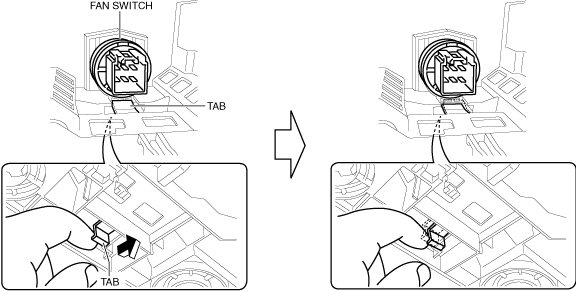

2. Press the tab as shown in the figure.
am3zzw00019939
|
3. Pull the fan switch outward and remove it with the tab pressed.
am3zzw00019940
|
R.H.D.
1. Disassemble in the order indicated in the figure.
am3zzw00018630
|
|
1
|
Dial
|
|
2
|
Airflow mode wire
(See Wire removal note.)
|
|
3
|
Air mix wire
(See Wire removal note.)
|
|
4
|
Climate control unit
|
2. Assemble in the reverse order of disassembly.

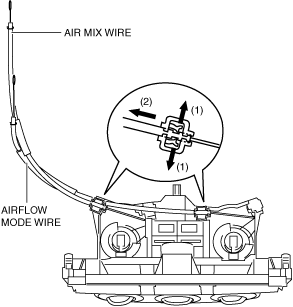

Wire removal note
1. Remove in the order indicated in the figure.
am3zzw00019941
|
