PRE-TENSIONER SEAT BELT

id081000500900

Purpose

• The pre-tensioner seat belt retracts and tightens the seat belt webbing to protect the front passengers during a collision.

Function

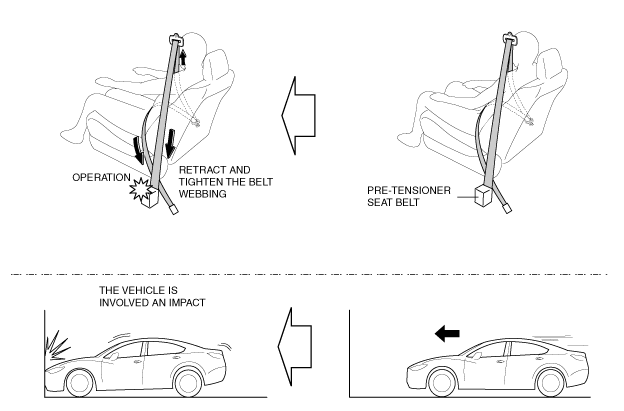

• The pre-tensioner seat belts operate (deploy) based on the operation signal from the SAS control module to instantly retract and tighten the belt webbing, restraining the driver and front passenger.

am3uun00002879

Construction

• The pre-tensioner seat belt is installed to the front seat belt retractor.

am3zzn00005382

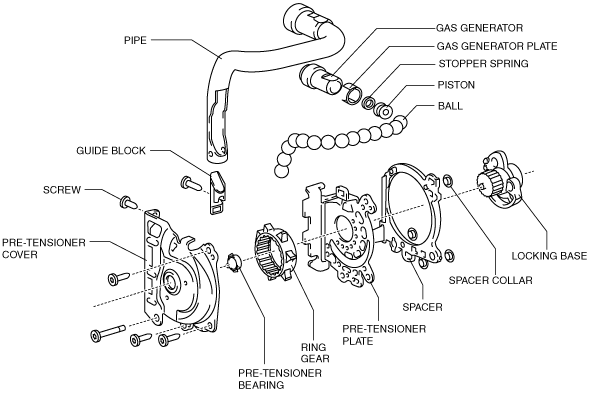

• The pre-tensioner seat belt consists of the following parts shown in the figure:

ac5uun00000469

Operation

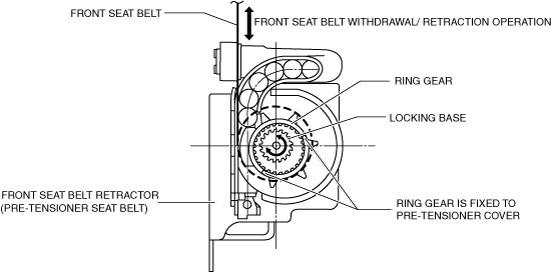

Normal operation (pre-tensioner non-operation)

• The locking base of the pre-tensioner seat belt is separated from the ring gear.

• The locking base of the pre-tensioner seat belt rotates in conjunction with the withdrawl/retraction of the front seat belt.

am3zzn00005383

Pre-tensioner activation

1. The gas generator emits a spark (1) when a signal is received from the SAS control module, causing gas to form.

2. The ball in the cylinder is pressed (3) by the generated gas pressure (2) and the ring gear is removed (4) from its securement.

3. The ring gear which is removed from its securement is caught in (5) the locking base, and the force of the pressed ball is transmitted to the locking base.

4. The locking base rotates and the front seat belt is retracted (6).

am3zzn00005384

Fail-safe

• Not applicable
