REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

1.  Remove the following parts:

(1)  Rear fog light (With rear fog light) (See REAR FOG LIGHT REMOVAL/INSTALLATION.)

(2)  Rear ultrasonic sensor short-cord (With parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

(3)  Rear ultrasonic sensor (With rear ultrasonic sensor) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

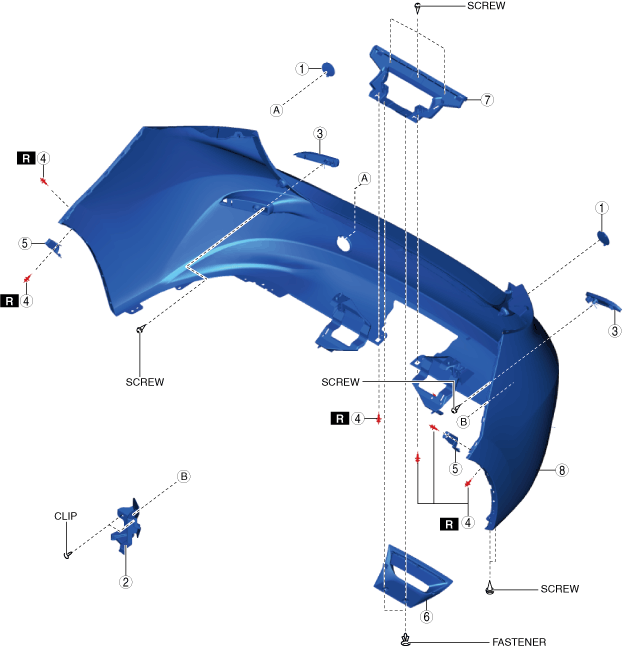

4SD

am3zzw00020538

1	Towing hook cover
2	Bracket (With bracket)
3	Rear reflector
4	Rivet (See Rivet Removal Note.)
5	Bracket
6	Rear fog light bezel (With rear fog light)
7	Rear fog light bracket (With rear fog light)
8	Rear bumper face

5HB

am3zzw00018762

1	Towing hook cover
2	Bracket (With rear ultrasonic sensor)
3	Rear reflector
4	Rivet (See Rivet Removal Note.)
5	Bumper guard
6	Bracket
7	Cover (With cover)
8	Rear bumper face

3.  Assemble in the reverse order of disassembly.

Rivet Removal Note

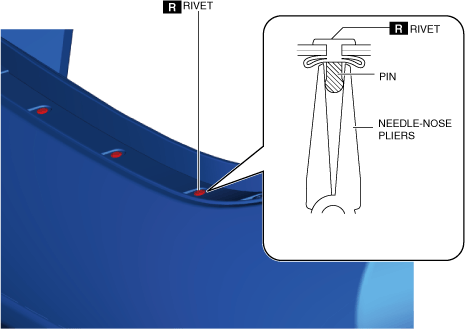

1.  When removing the rivet, perform the following procedure:

(1)  Secure the rivet pin from the rear bumper side using needle-nose pliers.

am3zzw00018763

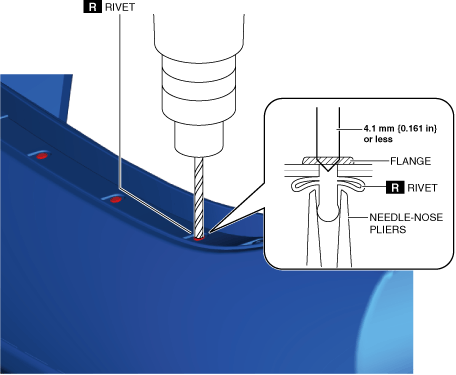

(2)  Use the following drill diameter.

Drill diameter:

4.1 mm {0.161 in} or less

Caution

•  Always use a drill bit of the specified diameter when removing the rivet. If an inappropriate diameter drill bit is used, the rear bumper face and the bumper guard may be damaged.

(3)  Remove the rivet flange using a drill and remove the rivet.

am3zzw00018764

(4)  Remove any rivet shavings from the rear bumper face and the bumper guard.
