SET PLATE REMOVAL/INSTALLATION

id091000878900

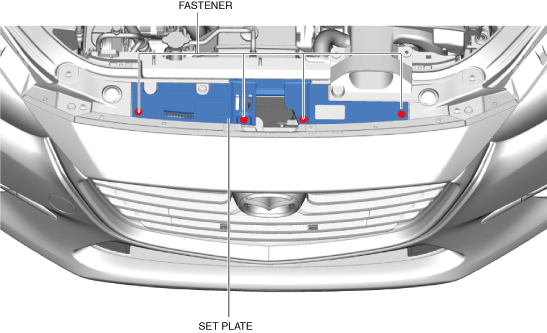

1.  Remove fasteners shown in the figure.

am3zzw00018776

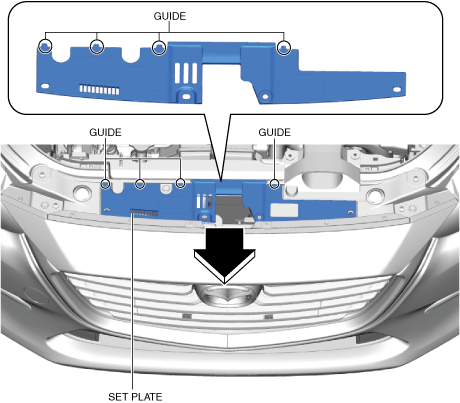

2.  Pull the set plate in the direction of the arrow and remove it while detaching the guides.

am3zzw00018777

3.  Install in the reverse order of removal.
