BONNET DISASSEMBLY/ASSEMBLY
id091000899800

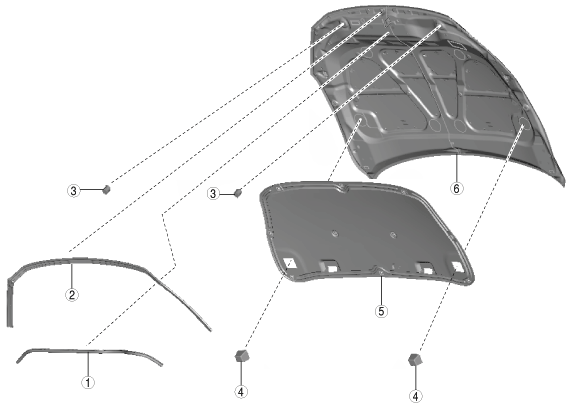

1. Disassemble in the order indicated in the table.
am3zzw00014339
|
|
1
|
Shroud seal weatherstrip
|
|
2
|
Parting seal weatherstrip
|
|
3
|
Stop rubber
|
|
4
|
Protector (With protector)
|
|
5
|
Bonnet insulator (With bonnet insulator)
|
|
6
|
Bonnet
|
2. Assemble in the reverse order of disassembly.
Bonnet Insulator Installation Note

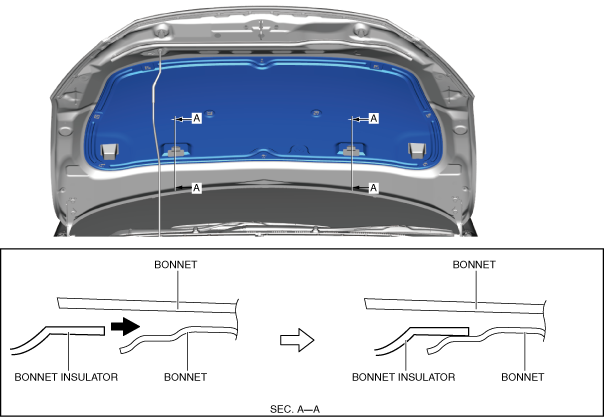

1. Move the bonnet insulator in the direction of the arrow shown in the figure and insert it into the inner side of the bonnet.
am3zzw00018815
|
2. Install the bonnet insulator fasteners in the order shown in the figure.
