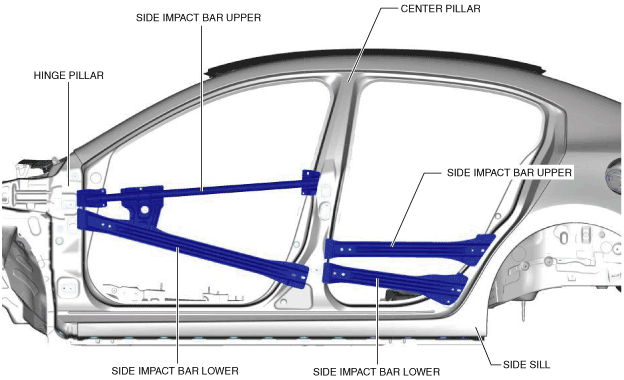

•  The side-impact bars prevent the doors from deforming inwards during a side-impact collision.

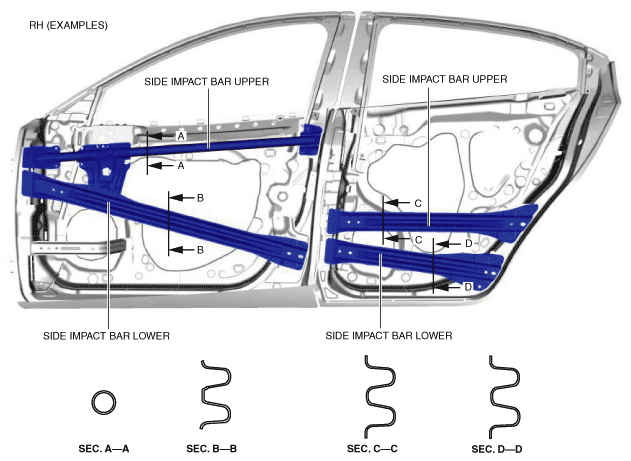

•  The front door side-impact bar lower and rear door side-impact bar upper are corrugated in shape to assure high rigidity.

am3uun00002700

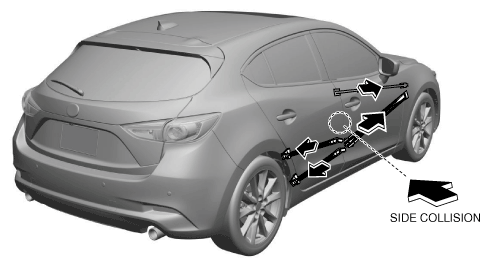

•  The side-impact bars disperse the impact during a side-impact collision.

am3zzn00006029

•  Inward penetration of a front door during a side-impact collision is suppressed by positioning the upper and lower side-impact bars of the front door so that they overlap the hinge pillar and center pillar.

•  Inward penetration of a rear door during a side-impact collision is suppressed by positioning the upper and lower side-impact bars of the rear door so that they overlap the center pillar and side sill.

•  Function not equipped.
