DOOR ADJUSTMENT

id091100521100

1. Measure the gap and height difference between the door and the body.

• If the measured value exceeds the standard clearance, adjust the door using the following procedure:

2. Loosen the door hinge installation bolts and adjust the door.

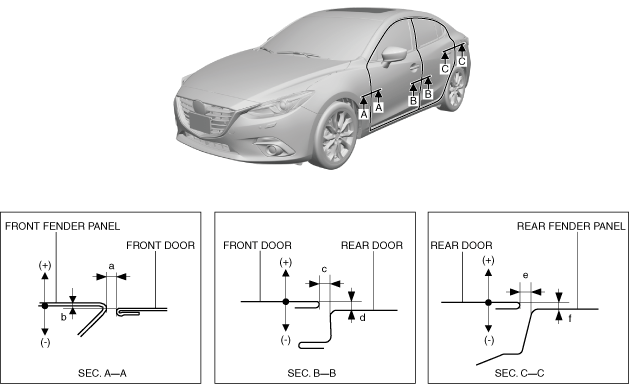

am3zzw00020854

Standard clearance

a: 2.5—4.3 mm {0.10—0.16 in}

b: –1.0—1.0 mm {–0.039—0.039 in}

c: 2.5—4.3 mm {0.10—0.16 in}

d: –1.0—1.0 mm {–0.039—0.039 in}

e: 2.3—4.3 mm {0.10—0.16 in}

f: –1.0—1.0 mm {–0.039—0.039 in}

3. Tighten the door hinge installation bolts. (See FRONT DOOR REMOVAL/INSTALLATION.) (See REAR DOOR REMOVAL/INSTALLATION.)

4. If the door does not open/close smoothly, adjust it by loosening the door lock striker installation screw. (See DOOR LOCK STRIKER REMOVAL/INSTALLATION.)

5. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
