LIFTGATE ADJUSTMENT

id091100521400

1. Measure the gap and height difference between the liftgate and the body.

• If the measured value exceeds the standard clearance, adjust the liftgate using the following procedure:

2. Loosen the liftgate hinge installation bolts and adjust the liftgate.

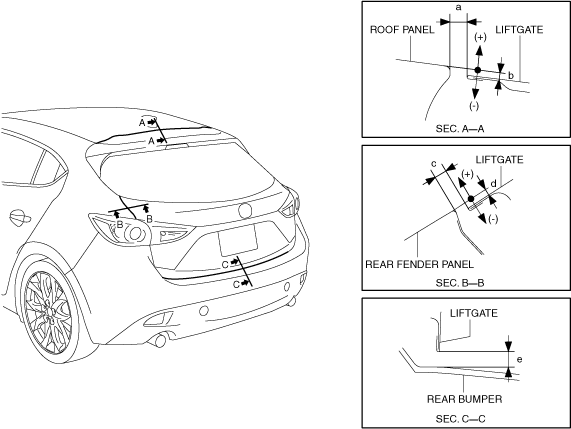

am3zzw00020861

Standard clearance

a: 5.1—7.1 mm {0.21—0.27 in}

b: –2.0—0.0 mm {–0.078—0.000 in}

c: 2.6—5.0 mm {0.11—0.19 in}

d: –1.9—0.5 mm {–0.07—0.01 in}

e: 4.3—8.3 mm {0.17—0.32 in}

3. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION.)

4. If the liftgate does not open/close smoothly, adjust it by loosening the liftgate lock striker installation screw. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)

5. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
