POWER WINDOW SUBSWITCH

id091200010900

Purpose

• Each door glass except for the driver-side can be opened/closed with occupant seated in the cabin using the power window subswitch.

Function

Manual

• The power window subswitch switches the contact point according to the switch operation and switches the circuit to the power window motor.

Auto (With auto-open/close function for all windows)

• When the power window subswitch is operated for auto open/close operation, it sends an auto open/close signal to the power window control module.

Construction

• The power window subswitch is equipped on the front passenger side and the rear passenger sides.

am3zzn00005919

Operation

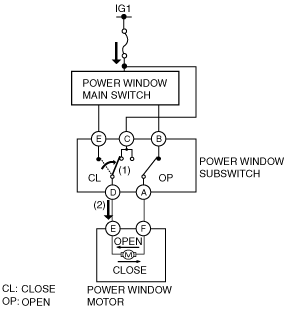

With auto-open/close function for driver-side window (Example: close operation)

1. When the power window subswitch is turned to the manual close position (1), a manual close signal is sent to the power window motor.(2)

am6xun00001640

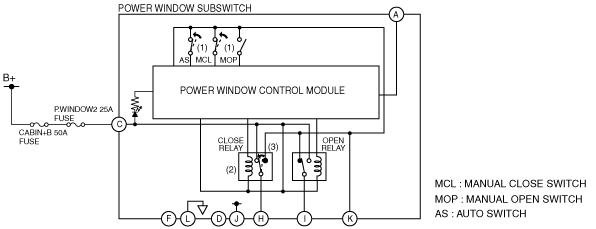

With auto-open/close function for all windows (Example: auto close operation)

1. When the power window subswitch is operated for an auto close operation, the contact points of the auto switch and the manual close switch turn on. (1)

2. When the power window control module detects an auto close signal, it flows (2) current to the close relay to turn on (3) the close relay.

ac9wzn00001488

Fail-safe

• Function not equipped.
