GLASS/WINDOWS/MIRRORS


id091200012000


Outline

•  A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window sub switches.
•  A power outer mirror system has been adopted with which the outer mirrors can be operated remotely using the power outer mirror switch.
•  Outer mirror automatic folding has been adopted which retracts/returns the power outer mirrors in conjunction with the locking/unlocking of the doors. (With outer mirror automatic folding)
•  A rear window defogger has been adopted with which rear window glass fogging can be cleared by pressing the rear window defogger switch.
•  Outer mirror heaters have been adopted which are can remove fogging on the surface of the outer mirrors in conjunction with the rear window defogger. (With heated outer mirrors)
•  An auto-dimming mirror has been adopted which prevents the driver from being dazzled by light from vehicles at the rear for assured safety while driving at night. (With auto-dimming mirror)

Glass/window/mirror specification


UV protection glass
Dark glass
Windshield
Front door glass
×
Rear door glass
×*1
×*1
Rear door quarter glass
×*1
×*1
Rear window glass
×*1
×*1

*1  :Availability depends on vehicle specification.

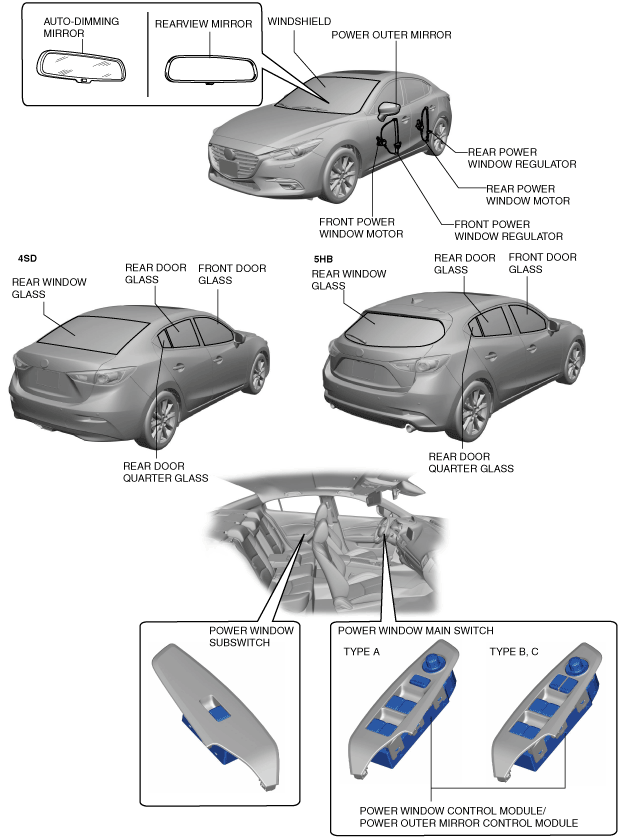

Structural View

am3zzn00005849
