POWER WINDOW MAIN SWITCH

id091200012300


Purpose

•  Remote control of door glass open/close and power outer mirror adjustment and retract/return are possible with occupant seated in the cabin (with retractable power outer mirrors).
•  Remote control of door glass open/close and power outer mirror adjustment are possible with occupant seated in the cabin (without retractable power outer mirrors).

Function


Power window main switch

•  Manual
―  When the power window main switch is operated for manual open/close operation, it sends a manual open/close signal to the power window control module.
•  Auto
―  When the power window main switch is operated for auto open/close operation, it sends an auto open/close signal to the power window control module.
•  Power cut
―  When the power-cut switch is pressed (contact point: Open), operation of the power window sub-switches for the front and rear passenger seats is disabled.


Power outer mirror switch

•  Up-down/left-right adjustment switch
―  The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the up-down/left-right adjustment motor is switched.
•  Left/right selection switch
―  The power outer mirror switch is used to select the side on which adjustment of the power outer mirror glass is desired.
•  Retract/Return switch (without outer mirror automatic folding)
―  The retract/return switch changes the contact point according to the switch operation. As a result, the circuit to the retract/return motor is changed.
•  Outer mirror automatic folding switch (with outer mirror automatic folding)
―  The auto-retractable power outer mirror switch changes the contact point according to the switch operation. As a result, the circuit to the retract/return motor is changed.


Construction

•  The power window main switch consists of the following parts:
―  Driver's side switch
―  Passenger's side switch
―  Rear side switch (LR)
―  Rear side switch (RR)
―  Power-cut switch
―  Power outer mirror switch
•  Up/down/left/right adjustment switch
•  Left/right selection switch
•  Retract/Return switch (without outer mirror automatic folding)
•  Outer mirror automatic folding switch (with outer mirror automatic folding)
•  The power window main switch has a built-in power window control module, and controls the auto reverse pinch protection, IG OFF timer, and IG OFF timer cancel functions.

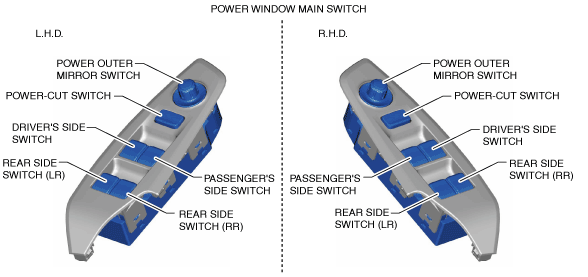

Type A

am3zzn00005856

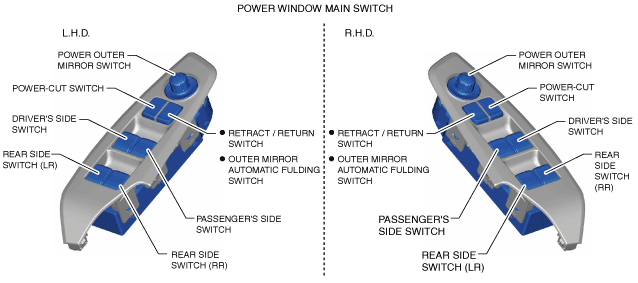

Type B

am3zzn00005857

Type C

am3zzn00005998

Operation


Power window main switch

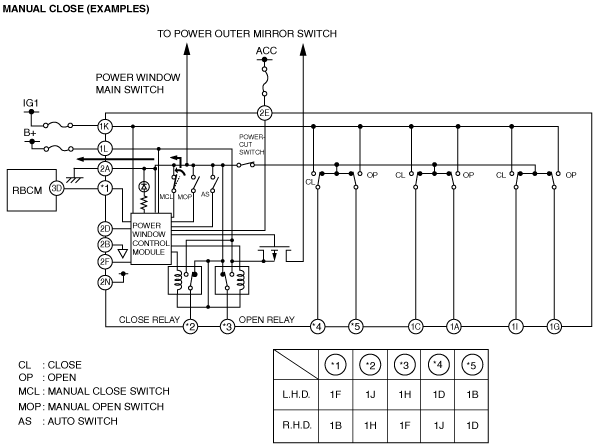

With auto-open/close function for driver-side window
1.  Contact points for door glass opening/closing can be changed by operating the power window main switch. The power window control module monitors the operation conditions of the driver's side switch and power window motor.
am3zzn00005925

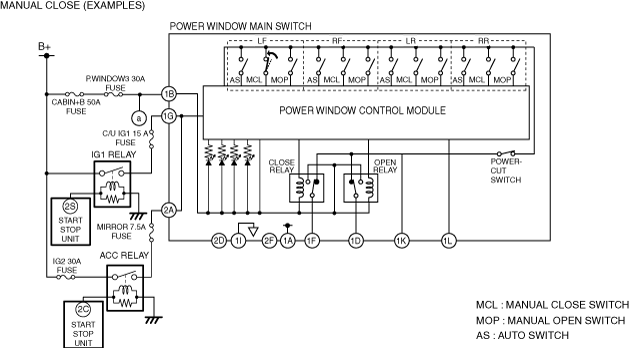

With auto-open/close function for all windows
1.  Contact points for door glass opening/closing can be changed by operating the power window main switch. The power window control module monitors the operation conditions of the driver's side switch and power window motor.
am3zzn00005926


Power-cut switch

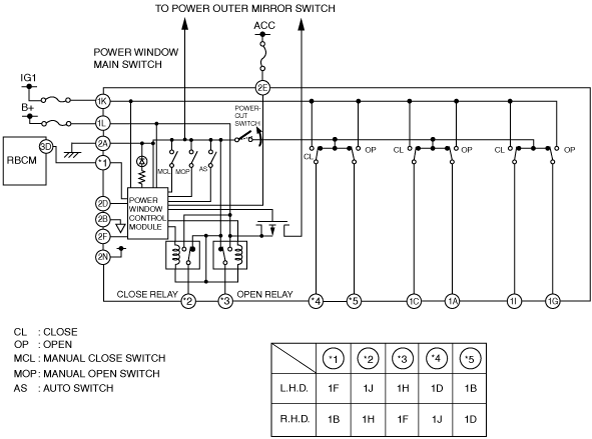

With auto-open/close function for driver-side window
•  When the power-cut switch of the power window main switch is pressed (contact point: Open), current from each power window sub-switch is interrupted.
am3zzn00005927

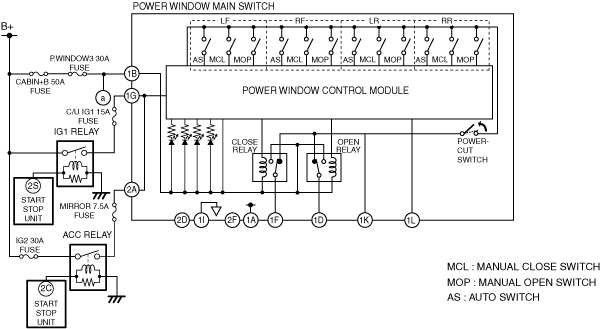

With auto-open/close function for all windows
•  When the power-cut switch of the power window main switch is pressed (contact point: Open), current from each power window sub-switch is interrupted.
am3zzn00005928


Power outer mirror switch

1.  Up/down/left/right contact points for the power outer mirror can be switched by operating the power outer mirror switch.

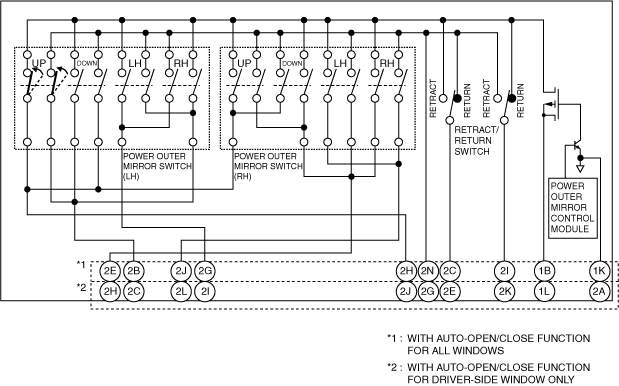

With retract/return function Type A (Example: adjusting left outer mirror upward)

am3zzn00006643

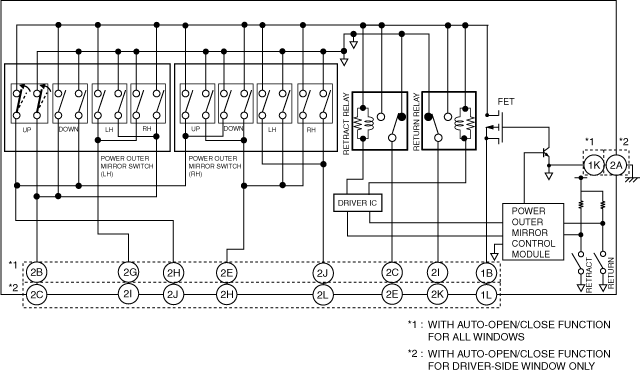

With retract/return function type B (Example: adjusting left outer mirror upward)

am3zzn00006644

Without retract/return function (Example: adjusting left outer mirror upward)

am3zzn00005931


Retract/Return switch

1.  Contact points for power outer mirror retract/return can be switched by operating the power outer mirror switch.

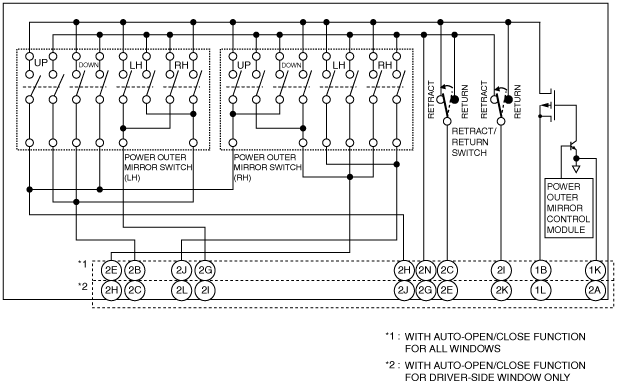

With retract/return function Type A (Example: retracting outer mirrors)

am3zzn00005932
1.  The contact points for the power outer mirror retract/return can be changed by operating the retract/return switch.

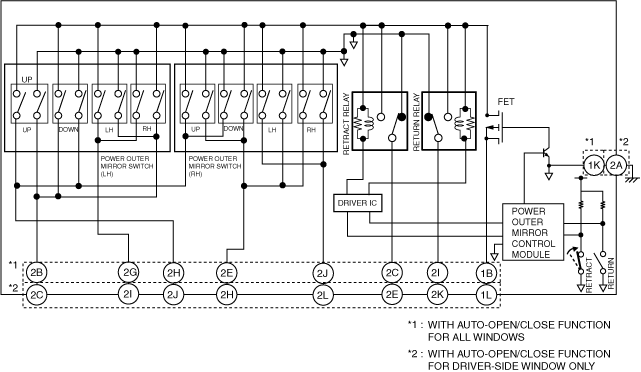

With retract/return function Type B (Example: retracting outer mirrors)

am3zzn00006645


Fail-safe

•  Function not equipped.
