POWER OUTER MIRROR SYSTEM

id091200012700

Outline

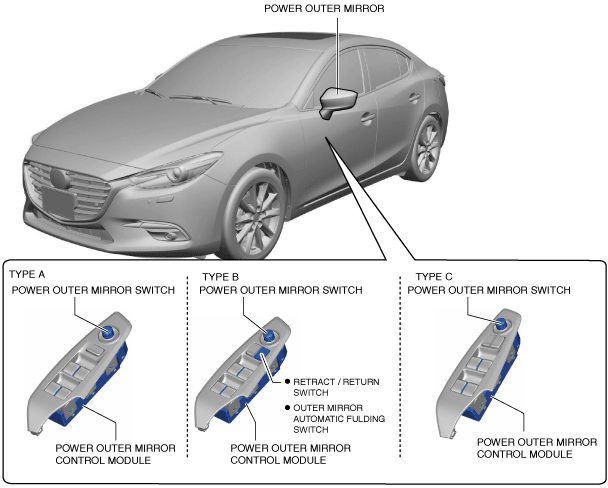

Structural View

am3zzn00005934

System Wiring Diagram

With retract/return function type A

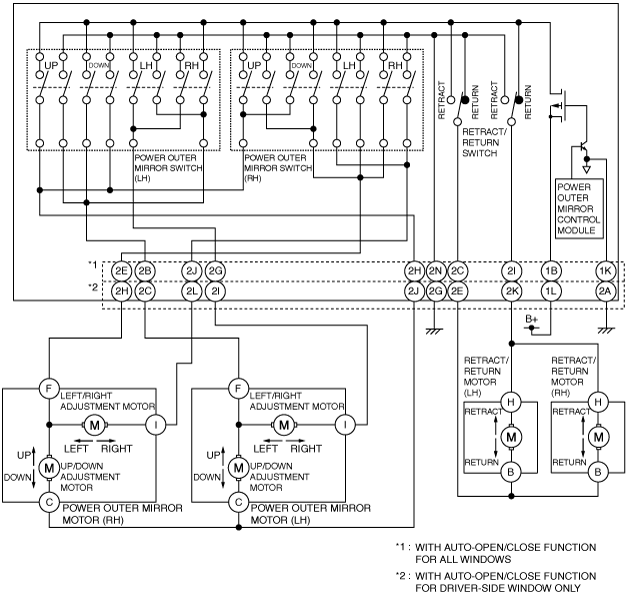

am3zzn00005999

With retract/return function type B

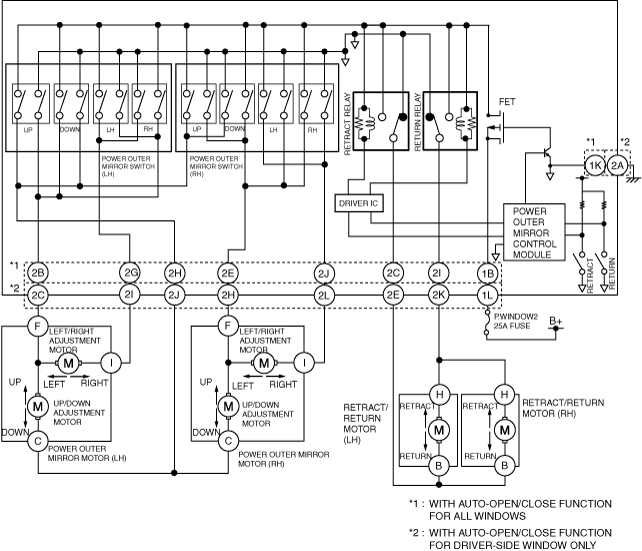

am3zzn00006646

Without retract/return function

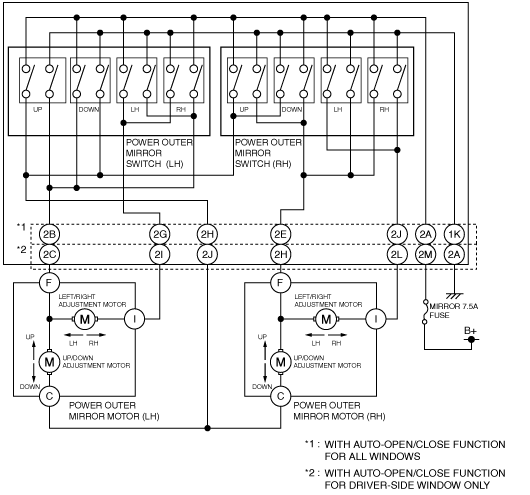

ac5wzn00003493

Function

Mirror glass adjustment function

•  Outer mirror glass can be adjusted up/down and left/right electrically.

Automatic retract/return function

•  When the power outer mirror control module detects door lock/unlock, it retracts/returns the power outer mirrors.

IG OFF timer function (with retractable power outer mirrors)

•  The power outer mirror switch can be operated for approx. 40 s after the ignition is switched from ON to ACC or OFF.

IG OFF timer cancel (with retractable power outer mirrors)

•  The IG OFF timer is canceled when approx. 40 s or more have elapsed since the ignition was switched to ACC or OFF or any door is opened during IG OFF timer operation.

Operation

Mirror glass adjustment (Example: Left outer mirror is adjusted upward)

With retract/return function type A

1.  When the upward switch is turned on (1), current from the power outer mirror control module to the transistor flows and the transistor turns on.

2.  The FET turns on when the transistor turns on and current flows (2).

3.  With current flowing, the up/down adjustment motor moves in the upward direction (3).

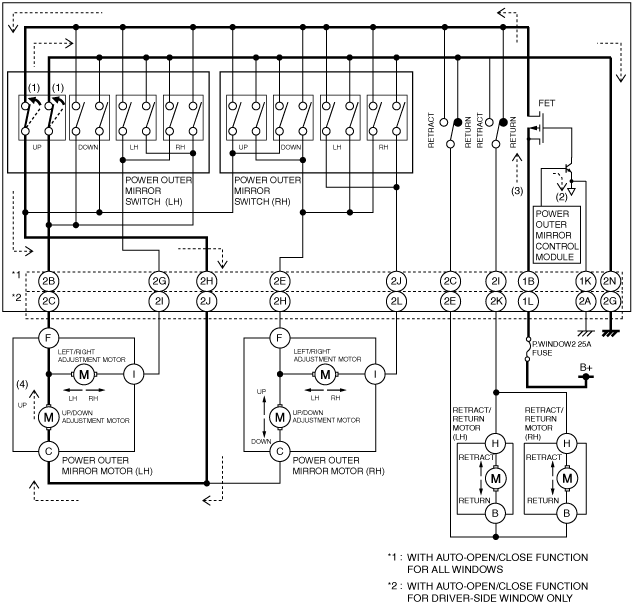

am3zzn00006000

With retract/return function type B

1.  When the upward switch is turned on (1), current from the power outer mirror control module to the transistor flows and the transistor turns on.

2.  The FET turns on when the transistor turns on and current flows (2).

3.  With current flowing, the up/down adjustment motor moves in the upward direction (3).

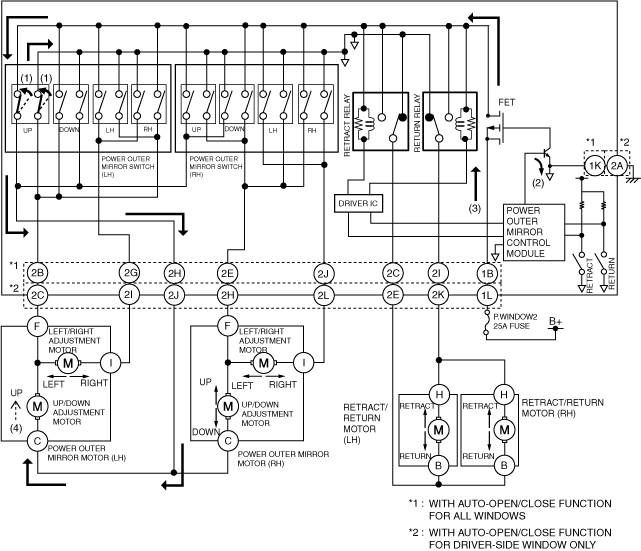

am3zzn00006647

Without retract/return function

1.  When the upward switch is turned on (1), the up/down adjustment motor operates upward.(2)

ac5wzn00003496

Outer mirror glass retract/return operation (Example: retracting outer mirrors)

With retract/return function type A

1.  When the switch is turned on (1) for retracting direction, the power outer mirror control module turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.   When the FET turns on, the retract/return motor operates in the retracting direction (4) and the outer mirrors retract.

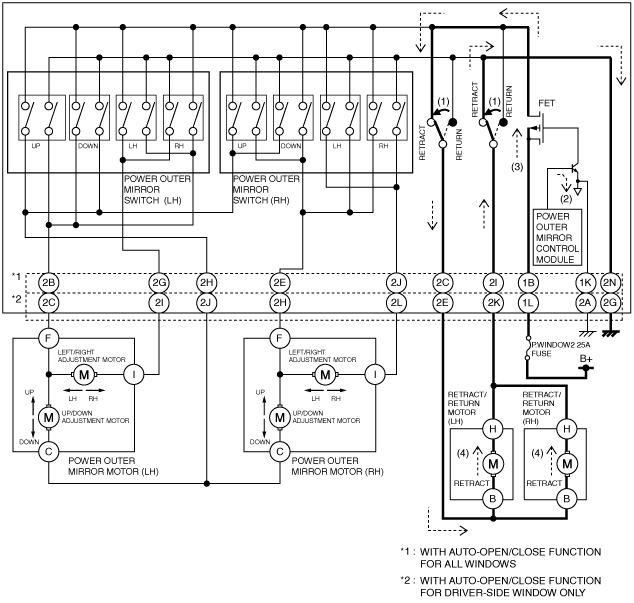

ac5wzn00003495

With retract/return function type B

1.  When the retract side of the retract/return switch is turned on (1), the power outer mirror control module turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the retract relay coil and the retract relay turns on (5).

4.  When the retract relay turns on, the retract/return motor operates (6) in the retract direction and the outer mirrors retract.

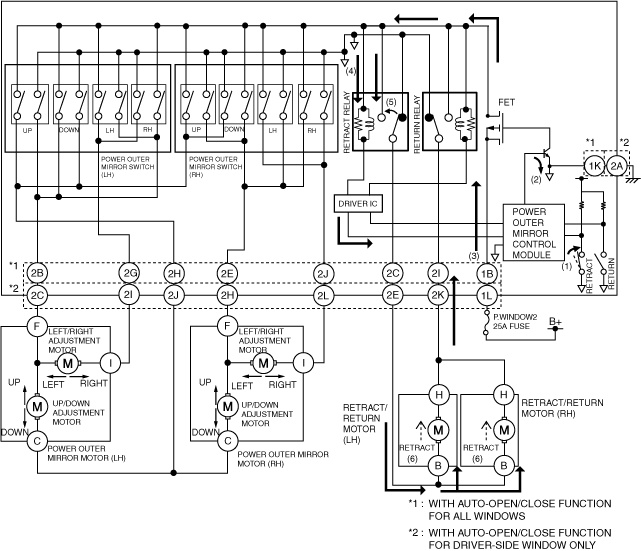

am3zzn00006648

Power outer mirror retract operation (With outer mirror automatic folding) (Example: Retracting power outer mirrors automatically)

Operation condition

•  The power outer mirrors retract when the driver's door is locked with all of the following conditions met.

―  Outer mirror automatic folding switch is in AUTO position

―  Ignition switched OFF

―  Driver's door is unlocked

1.  When the power outer mirror control module detects (1) a lock signal, it turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the retract relay coil and the retract relay turns on (5).

4.  When the retract relay turns on, the retract/return motor operates (6) in the retract direction and the power outer mirrors retract.

am3zzn00006649

Power outer mirror return operation (With outer mirror automatic folding) (Example: Returning power outer mirrors automatically)

Operation condition

•  The power outer mirrors return when the driver's door is unlocked or the ignition is switched ON (engine off or on) with all of the following conditions met.

―  Outer mirror automatic folding switch is in AUTO position

―  Ignition switched OFF

―  Driver's door is locked

1.  When the power outer mirror control module detects (1) an unlock signal or the ignition switched ON (engine off or on), it turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the return relay coil and the return relay turns on (5).

4.  When the return relay turns on, the retract/return motor operates (6) in the return direction and the power outer mirrors return.

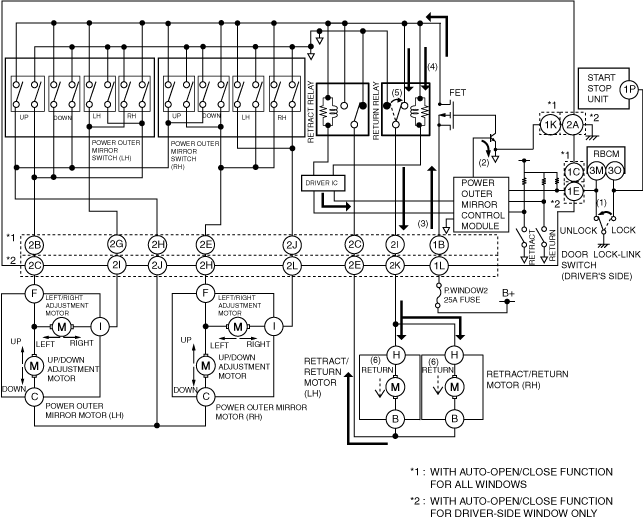

am3zzn00006650

IG OFF Timer Cancel

1.  The power window control module detects the open/close conditions of all the doors based on the door open/close signal sent from the rear body control module (RBCM).

2.  When a door open signal is sent from the rear body control module (RBCM) while the IG OFF timer is on, the IG OFF timer function is canceled.

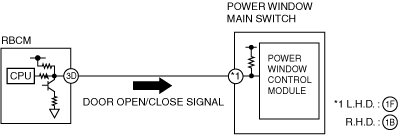

am3zzn00005940

Fail-safe
