REAR WINDOW DEFOGGER/OUTER MIRROR HEATER

id091200015000


Outline

•  The rear window defogger removes fogging from the rear window glass surface.
•  The outer mirror heaters remove fogging from the surface of outer mirror glass. (With heated outer mirrors)

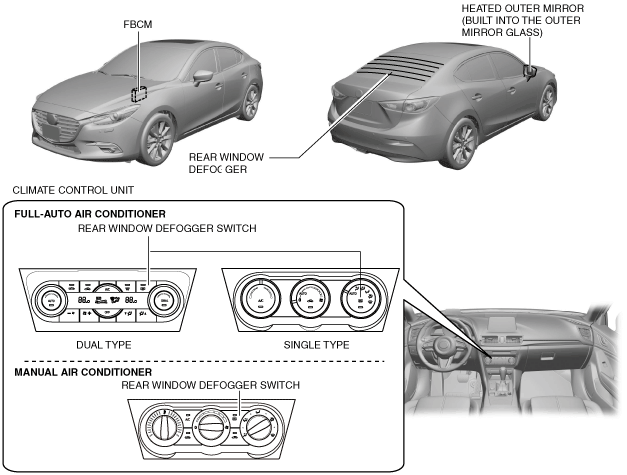

Structural View

am3zzn00005942

System Wiring Diagram

Full-auto air conditioner

am3zzn00005943

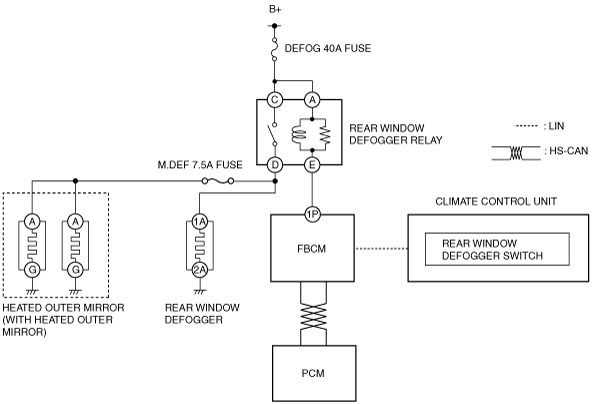

Manual air conditioner

am3zzn00005944

Function

•  Fogging on the rear window glass is removed by heating the rear window glass using the rear window defogger filaments to vaporize moisture on the window.

Personalization features

•  The rear window defogger operation time setting can be changed (initial setting is 15 minutes). Refer to the [GLASS/WINDOWS/MIRRORS PERSONALIZATION] for details on personalization features. (With GLASS/WINDOWS/MIRRORS PERSONALIZATION) (See GLASS/WINDOWS/MIRRORS PERSONALIZATION.)


Construction


Rear window defogger

•  The rear window defogger is inside the rear window glass.
am3zzn00005945


Heated outer mirror

•  The heated outer mirror filament is integrated in the outer mirror glass.
ac5wzn00000294


Operation

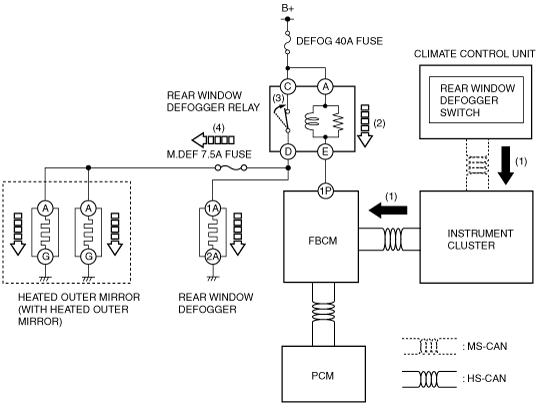

Full-auto air conditioner

1.  When the rear window defogger switch on the climate control unit is turned on, an ON/OFF control request signal is sent to the front body control module (FBCM) through the instrument cluster as a CAN signal.

2.  When the front body control module (FBCM) receives the ON/OFF control request signal, it supplies the battery voltage to the rear window defogger relay.

3.  When the battery voltage is supplied to the rear window defogger relay, a switch inside the rear window defogger relay is turned on.

4.  When the switch inside the rear window defogger relay is turned on, the battery voltage is supplied to the rear window defogger/heated outer mirrors to operate them.

am3zzn00005946

Note
•  When approx. 15 min. has elapsed after the rear window defogger switch was turned on, the timer control of the front body control module (FBCM) turns off the rear window defogger relay automatically to turn off the rear window defogger/heated outer mirror.
•  When the rear window defogger switch is pressed while the rear window defogger/heated outer mirrors are operating, they stop operating.

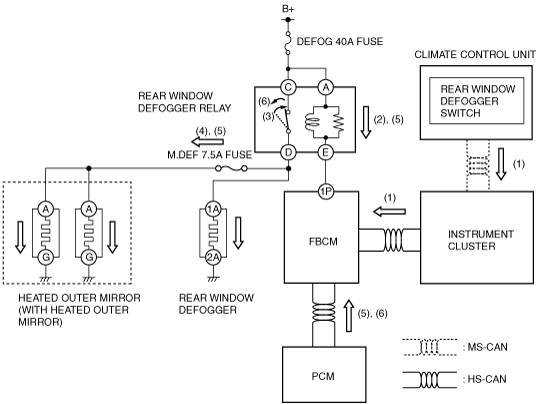

Rear window defogger operation time is set to Continuous
1.  When the rear window defogger switch on the climate control unit is turned on, an ON/OFF control request signal is sent to the front body control module (FBCM) through the instrument cluster as a CAN signal.
2.  When the front body control module (FBCM) receives the ON/OFF control request signal, it supplies the battery voltage to the rear window defogger relay.
3.  When the battery voltage is supplied to the rear window defogger relay, a switch inside the rear window defogger relay is turned on.
4.  When the switch inside the rear window defogger relay is turned on, the battery voltage is supplied to the rear window defogger/heated outer mirrors to operate them.
5.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defogger operation request signal, it receives an ambient temperature signal from the PCM, and if the PCM detects an ambient temperature of 0 °C or less, the front body control module (FBCM) continues supplying power to the rear window defogger relay. (Ambient temperature of 0 °C or less detected)
6.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defogger operation request signal, it receives an ambient temperature signal from the PCM, if the PCM detects an ambient temperature of 1 °C or more, the front body control module (FBCM) stops supplying power to the rear window defogger and the rear window defogger operation is stopped. (Ambient temperature of 1 °C or more detected)
am3zzn00005947

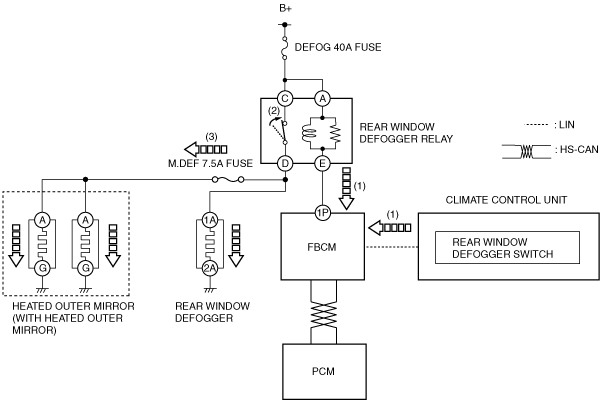

Manual air conditioner

1.  When the rear window defogger switch on the climate control unit is turned on, a signal is sent from the climate control unit to the front body control module (FBCM) and the battery voltage is supplied to the rear window defogger relay.

2.  When the battery voltage is supplied to the rear window defogger relay, a switch inside the rear window defogger relay is turned on.

3.  When the switch inside the rear window defogger relay is turned on, the battery voltage is supplied to the rear window defogger/heated outer mirrors to operate them.

am3zzn00005948

Note
•  When approx. 15 min. has elapsed after the rear window defogger switch was turned on, the timer control of the front body control module (FBCM) turns off the rear window defogger relay automatically to turn off the rear window defogger/heated outer mirror.
•  When the rear window defogger switch is pressed while the rear window defogger/heated outer mirrors are operating, they stop operating.

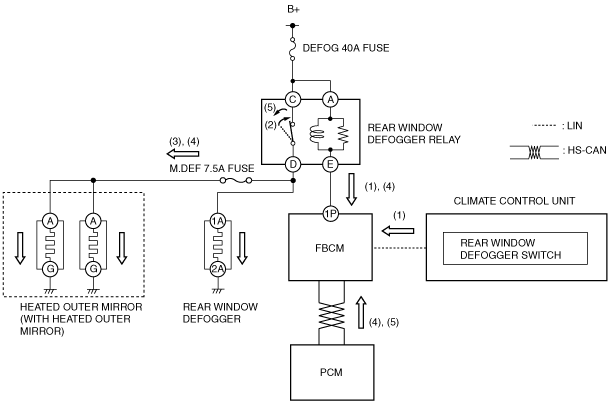

Rear window defogger operation time is set to Continuous
1.  When the rear window defogger switch on the climate control unit is turned on, a signal is sent from the climate control unit to the front body control module (FBCM) and the battery voltage is supplied to the rear window defogger relay.
2.  When the battery voltage is supplied to the rear window defogger relay, a switch inside the rear window defogger relay is turned on.
3.  When the switch inside the rear window defogger relay is turned on, the battery voltage is supplied to the rear window defogger/heated outer mirrors to operate them.
4.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defogger operation request signal, it receives an ambient temperature signal from the PCM, and if the PCM detects an ambient temperature of 0 °C or less, the front body control module (FBCM) continues supplying power to the rear window defogger relay. (Ambient temperature of 0 °C or less detected)
5.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defogger operation request signal, it receives an ambient temperature signal from the PCM, if the PCM detects an ambient temperature of 1 °C or more, the front body control module (FBCM) stops supplying power to the rear window defogger and the rear window defogger operation is stopped. (Ambient temperature of 1 °C or more detected)
am3zzn00005949


Fail-safe

•  Function not equipped.
