SENSOR COVER REMOVAL/INSTALLATION

id091200025000

1.  Pull the sensor cover A in the direction of the arrow shown in the figure and detach the tab A of the sensor cover A and sensor cover B.

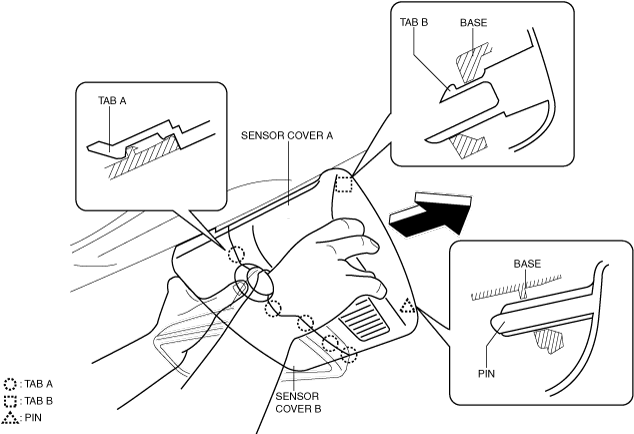

am3zzw00020626

2.  Pull the sensor cover A in the direction of the arrow shown in the figure, detach the tab B and pin for the sensor cover A and the base, and remove the sensor cover A from the base.

3.  Remove the wiring harness from the hook.

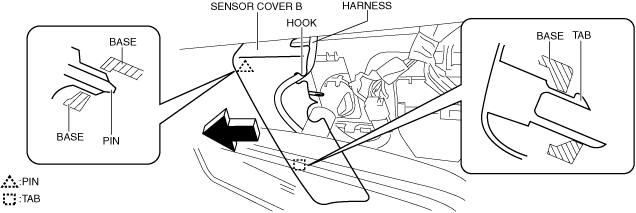

am3zzw00020627

4.  Pull the sensor cover B in the direction of the arrow shown in the figure, detach the tab and pin for the sensor cover B and the base, and remove the sensor cover B from the base.

5.  Install in the reverse order of removal.
