POWER SEAT SYSTEM

id091300262000


Outline

•  The power seat system drives the electric motor, operates the front seat safely, and changes the driving posture to suit the occupant by operating the power seat switch.
•  10-WAY power seats have been adopted on the driver's seat. (With position memory system)
•  6-WAY power seats have been adopted on the driver's seat. (Without position memory system)

Function

With position memory system
•  The 10-WAY power seats are equipped with the following functions:
―  Slide mechanism
―  Recliner mechanism
―  Lift mechanism
―  Tilt mechanism
―  Lumbar support mechanism
Without position memory system
•  The 6-WAY power seats are equipped with the following functions:
―  Slide mechanism
―  Recliner mechanism
―  Lift mechanism

Slide mechanism

•  The sliding function adjusts the front and back positions of the front seats.
am3uun00003572


Recliner mechanism

•  The recliner function adjusts the angle of the front seat backs.
am3uun00003573


Lift mechanism

•  The lift function adjusts the height of the front seats.
am3uun00003574


Tilt mechanism

•  The front tilt function adjusts the height of the front part of the front seat cushion.
am3zzn00005832


Lumbar support mechanism

•  The lumbar support function adjusts the bulge amount of the abdominal area of the front seat back.
am3zzn00005833

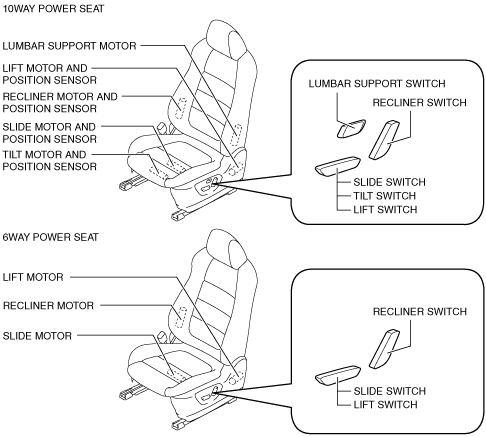

Structural View

am3zzn00005834

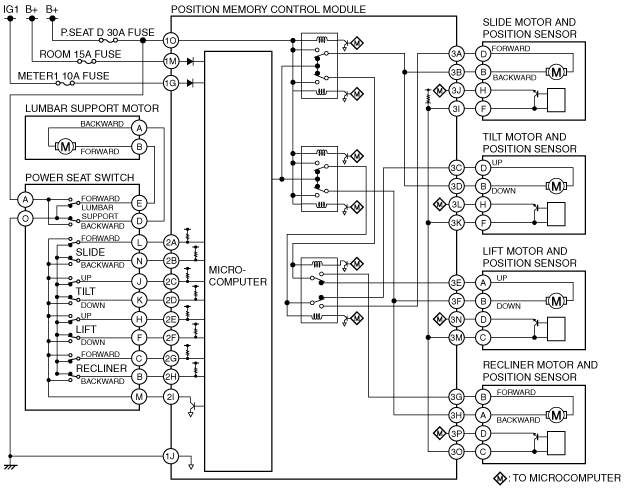

System Diagram

With position memory system

am3zzn00005835

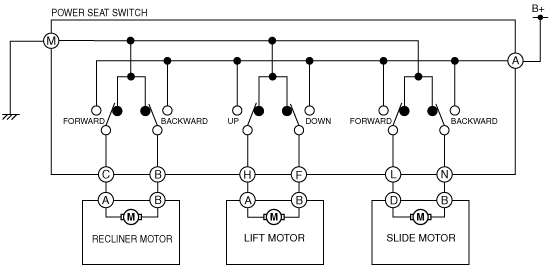

Without position memory system

am3zzn00004266

Operation


Recliner operation

With position memory system

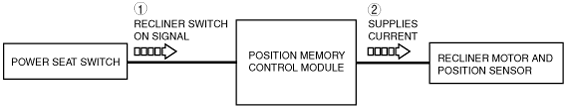

1.  When the recliner switch of the power seat switch is operated forward, the recliner switch ON signal is input the position memory control module.
2.  When the position memory control module receives the recliner switch ON signal, power is supplied to the recliner motor and position sensor.
3.  When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.
am3zzn00005836
Without position memory system
1.  When the recliner switch is operated forward or backward (1), current from the battery flows to the recliner motor (2).
2.  When the current flows to the recliner motor, the motor operates to tilt the front seat back forward or backward.
am3zzn00004267


Lift operation

With position memory system
1.  When the lift switch of the power seat switch is operated up, the lift switch ON signal is input the position memory control module.
2.  When the position memory control module receives the lift switch ON signal, power is supplied to the lift motor and position sensor.
3.  When current flows to the lift motor for lift-up motion, the motor drives to set the position of the front seat higher.
am3zzn00005837

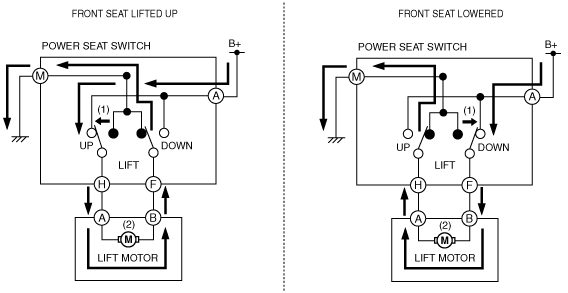

Without position memory system
1.  When the lift switch is operated upward or downward (1), current from the battery flows to the lift motor (2).
2.  When the current flows to the lift motor, the motor operates to lift up or lower the front seat.
am3zzn00004268

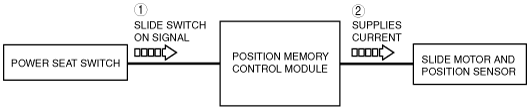

Slide operation

With position memory system
1.  When the slide switch of the power seat switch is operated forward, the slide switch ON signal is input the position memory control module.
2.  When the position memory control module receives the slide switch ON signal, power is supplied to the slide motor and position sensor.
3.  When current flows to the slide motor and position sensor for forward motion, the motor drives to slide the front seat forward.
am3zzn00005838

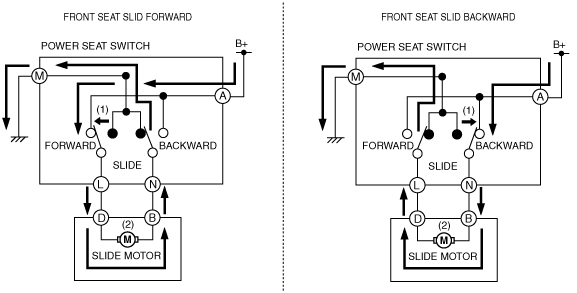

Without position memory system
1.  When the slide switch is operated forward or backward (1), current from the battery flows to the slide motor (2).
2.  When the current flows to the slide motor, the motor operates to slide the front seat forward or backward.
am3zzn00004269

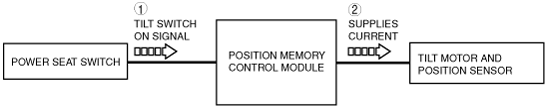

Tilt operation

1.  When the tilt switch of the power seat switch is operated up, the tilt switch ON signal is input the position memory control module.

2.  When the position memory control module receives the tilt switch ON signal, power is supplied to the tilt motor and position sensor.

3.  When current flows to the tilt motor and position sensor for tilt-up motion, the motor drives to set the position of the front part of the front seat cushion higher.

am3zzn00005839

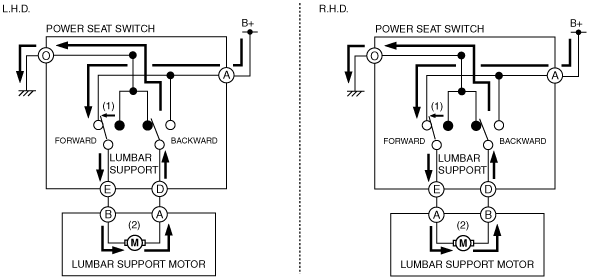

Lumbar support operation

1.  When the lumbar support switch is operated (1) forward, current from the battery flows (2) to the lumbar support motor.

2.  When current flows to the lumbar support motor for forward motion, the motor drives to set the bulge amount of the abdominal area of the front seat back.

am3zzn00005840


Fail-safe

•  Function not equipped.
