LUMBAR SUPPORT MOTOR INSPECTION

id091300804300

Warning

•  Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Slide hook A in the order of arrows (1), (2), (3) shown in the figure and disconnect them from hook B.

ac5uuw00002049

3.  Open fasteners C.

ac5uuw00002050

4.  Disconnect the lumber support motor connector.

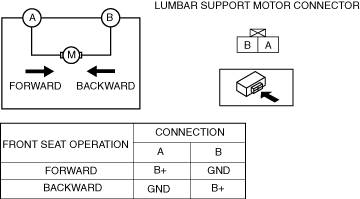

5.  Apply battery positive voltage to the lumber support motor terminals and inspect the front seat back operation.

am3zzw00019393
