LIFT MOTOR INSPECTION

id091300881000

Warning

•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the front sear side cover. (front door side) (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

3.  Disconnect the lift motor connector.

4.  Apply battery positive voltage and connect the ground to lift motor terminals A and B, and then inspect the lift motor operation.

B+ Terminal	Ground Terminal	Operation
A	B	Up
B	A	Down

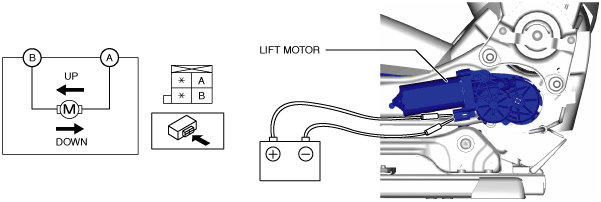

am3uuw00013055

•  If the lift motor does not operate as indicated in the table, replace the front seat cushion frame/adjuster unit. (See FRONT SEAT CUSHION FRAME/ADJUSTER UNIT REMOVAL/INSTALLATION.)
