FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION
id091300911900
-
Warning
-
• Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See
AIR BAG SYSTEM SERVICE WARNINGS.) (See
AIR BAG SYSTEM SERVICE CAUTIONS.)
• If the sliding mechanisms on both sides are not locked after assembling the front seat, the front seat will operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the front seat, shake it up and down and verify that the sliding mechanism on the both sides are locked. (With manual seat)
-
Caution
-
• After the front seat has been removed, if the slider lever is operated and the front seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a front seat, do not operate the slider lever. (With manual seat)
• Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.
• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
1. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)
2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)
3. Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)
4. Remove the fasteners and set the front seat cushion trim away from the front seat cushion frame. (With power seat system)
5. Move the hook in the order of arrows (1) and (2) shown in the figure and set the front seat cushion trim away from the front seat cushion frame. (Without power seat system)
6. Disconnect the connectors shown in the figure.
7. Remove the wiring harness clip.

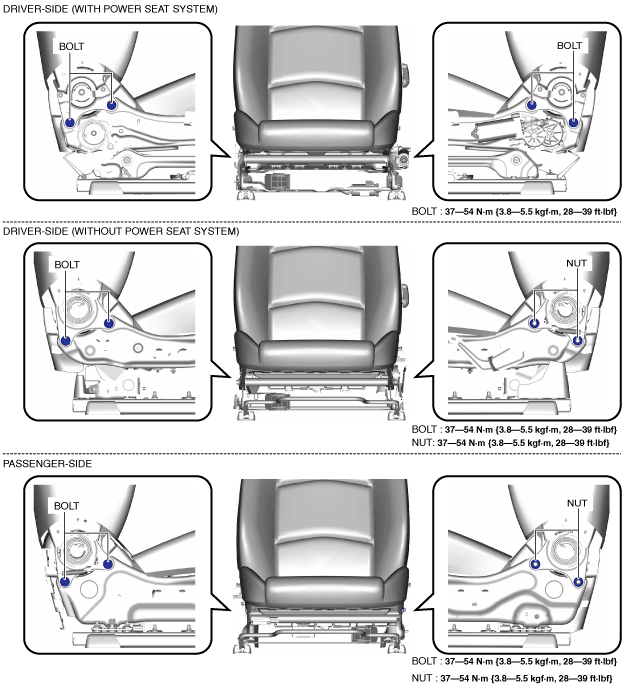

8. Remove the bolts and the nuts.
9. Remove the front seat back component.
10. Install in the reverse order of removal.
