REAR SEAT BACK TRIM REMOVAL/INSTALLATION
id091300989400
-
Caution
-
• When performing the procedure with a rear seat back removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
Removal
4SD
1. Remove the following parts:
- (1) Rear seat center armrest. (With rear seat center armrest) (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)
- (2) Rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (3) Rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)
2. While partially peeling back the rear seat back trim, remove the surface fasteners. (With 6:4 split type)

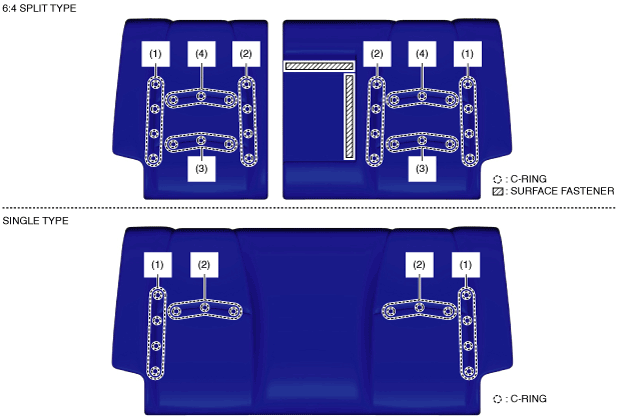

3. Remove the C-rings in the order shown in the figure and remove the rear seat back trim from the rear seat back pad.
-
Caution
-
• If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.
• If a C-ring is damaged, replace it with a new one.
5HB
1. To remove the rear seat back trim (LH), remove the following part:
- (1) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (2) Rear center seat belt anchor (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)
- (3) Rear seat center armrest (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)
2. Remove the following parts:
- (1) Rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (2) Rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)
3. While partially peeling back the rear seat back trim, remove the surface fasteners. (With surface fastener)
4. Remove the C-rings in the order shown in the figure and remove the rear seat back trim from the rear seat back pad.
-
Caution
-
• If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.
• If a C-ring is damaged, replace it with a new one.
Installation
4SD

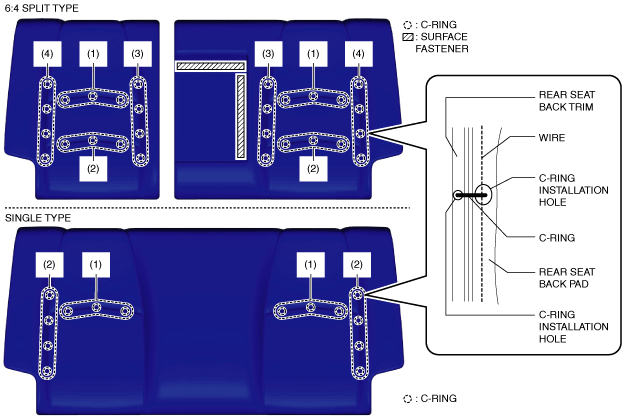

1. Align the rear seat back trim with the installation hole of the rear seat back pad and install the C-rings in the order shown in the figure.
-
Caution
-
• If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.
• If a C-ring is damaged, replace it with a new one.
-
Note
-
• Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
2. While covering the rear seat back trim with the rear seat back pad, install the surface fasteners. (With 6:4 split type)

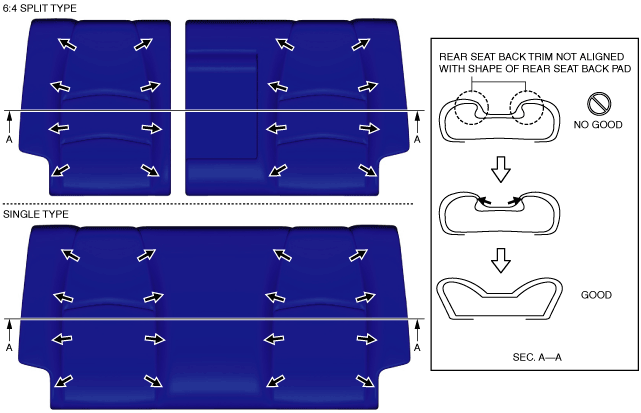

3. Press the rear seat back pad inward while pulling the rear seat back trim outward.
4. Align the rear seat back trim with the shape of the rear seat back pad while pressing the rear seat back pad outward.
5. Install the following parts:
- (1) Rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)
- (2) Rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (3) Rear seat center armrest. (With rear seat center armrest) (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)
5HB

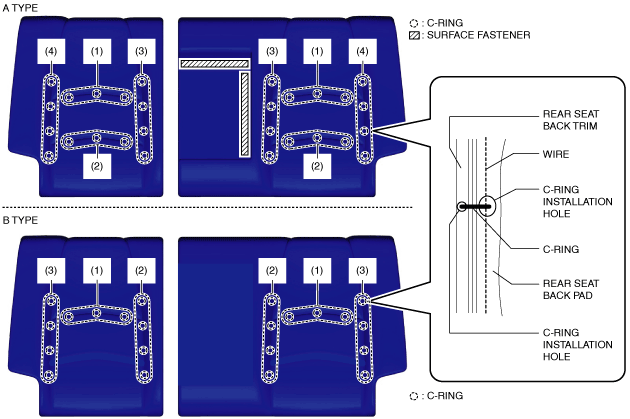

1. Align the rear seat back trim with the installation hole of the rear seat back pad and install the C-rings in the order shown in the figure.
-
Caution
-
• If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.
• If a C-ring is damaged, replace it with a new one.
-
Note
-
• Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.
2. While covering the rear seat back trim with the rear seat back pad, install the surface fasteners. (With surface fastener)

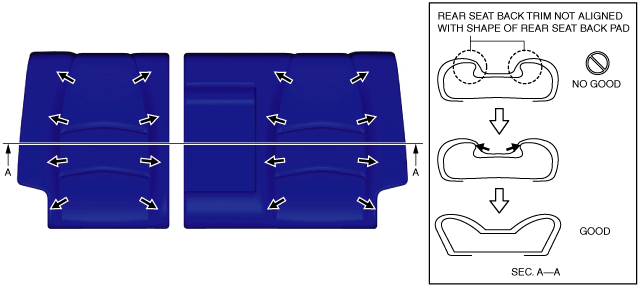

3. Press the rear seat back pad inward while pulling the rear seat back trim outward.
4. Align the rear seat back trim with the shape of the rear seat back pad while pressing the rear seat back pad outward.
5. Install the following parts:
- (1) Rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)
- (2) Rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)
6. To install the rear seat back trim (LH), install the following part:
- (1) Rear seat center armrest (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)
- (2) Rear center seat belt anchor (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION.)
- (3) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
