CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

id091300999600

Top Tether Anchor

4SD

Note

•  When removing the top tether anchor from the vehicle or putting it back in, it can be performed easier by removing the head restraint

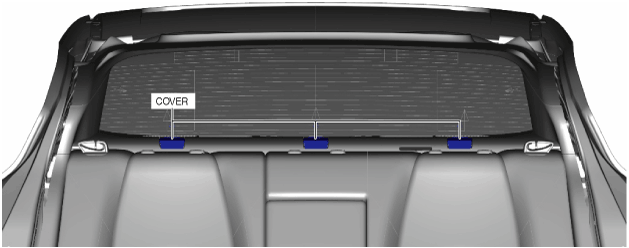

1.  Open the cover.

am3uuw00013076

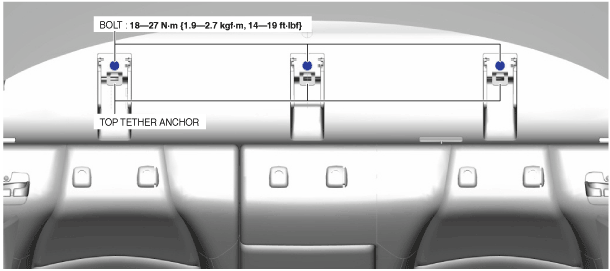

2.  Remove the bolts.

am3uuw00013077

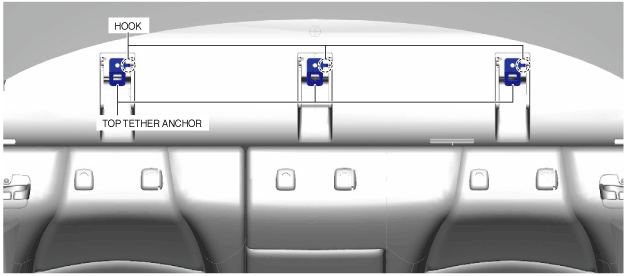

3.  Remove the top tether anchors while pulling the top tether anchor hooks out of the body panel.

am3uuw00013078

4.  Install in the reverse order of removal.

5HB

Note

•  The top tether anchors are integrated into the rear seat back frame.

•  For the top tether anchor removal/installation, refer to the rear seat back frame removal/installation. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

ISOFIX Anchor

Note

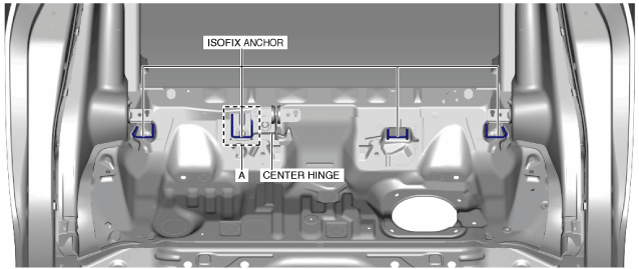

•  The ISOFIX anchor shown in figure A is integrated with the rear seat hinge (center hinge).

am3zzw00016389

•  ISOFIX anchors other than shown in figure A are integrated with the body.

•  For the ISOFIX anchor removal/installation, refer to the rear seat hinge removal/installation. (See REAR SEAT HINGE REMOVAL/INSTALLATION.)
