INTRUDER SENSOR

id091400003500

Purpose

• A cabin intrusion is detected.

Function

• The intruder sensor detects movement in the vehicle by ultrasonic waves and sends the detection signal to the rear body control module (RBCM).

Construction

• The intruder sensor is located in center part of the roof the forward part of the roof.

ac5wzn00000923

Operation

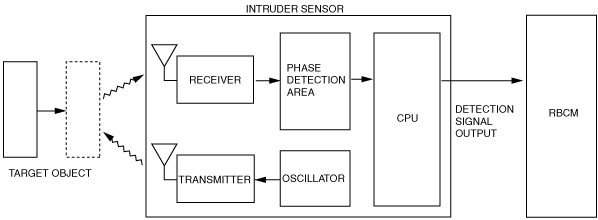

1. When the theft-deterrent system is stand-by mode, the intruder sensor outputs ultrasonic waves in the passenger compartment. The intruder sensor detects differences in the ultrasonic waves (reflected waves) that are output and bounced off a target object.

2. When a difference in reflected waves occurs by movement in the vehicle (intruder), the CPU calculates the level of difference.

3. If the differences meet certain criteria, the intruder sensor sends a detection signal to the rear body control module (RBCM).

ac5wzn00000924

Fail-safe

• Function not equipped.
