PUSH BUTTON START


id091400006000


Purpose

•  By pressing the switch ON/OFF, the push button start notifies the start stop unit of the user power supply switching operation.

Function


Push button start indicator light

•  Illuminates the push button start indicator light to notify the driver of the power supply status.


START/STOP/ENGINE indicator light

•  The characters in the push button start illuminate to notify the user of the button position.

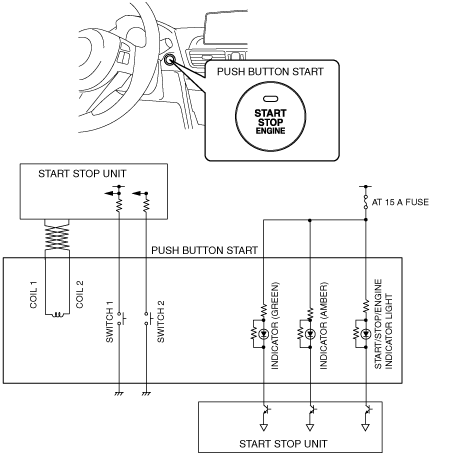

Construction

•  The push button start is installed in the meter hood.
•  Two types of switches are integrated in the push button start.
•  The push button start has the following integrated indicators. For the indicator inspection conditions, refer to the PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM] or PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].
―  ACC indicator
―  ON indicator
―  Indicator (green)
―  Indicator (amber)
•  The push button start has an integrated coil antenna for the immobilizer system. (See COIL ANTENNA.)
am3uun00002642

Operation

•  When the push button start is pressed, switches 1 and 2 turn on (contact point: closed), and when released, it turns off (contact point: open).

Push button start indicator light

Green illumination
•  Illuminates if the conditions necessary for engine-start are met.
Green flashing
•  Flashes when the steering lock cannot be released.
Amber illumination
•  Illuminates when the steering lock has been released or there is a malfunction in the system.
Amber flashing
•  Flashes when a malfunction is detected.
am3uun00002546


START/STOP/ENGINE indicator light

•  When a door is open/closed, the START/STOP/ENGINE indicator light illuminates when the headlights are turned on.

am3uun00002643

Fail-safe

•  Function not equipped.
