REQUEST SWITCH

id091400109600

Purpose

• Transmits the request switch operation of the user to the LF control unit.

Function

• The request switch ON signal is sent to the LF control unit by operating the request switch.

Construction, Operation

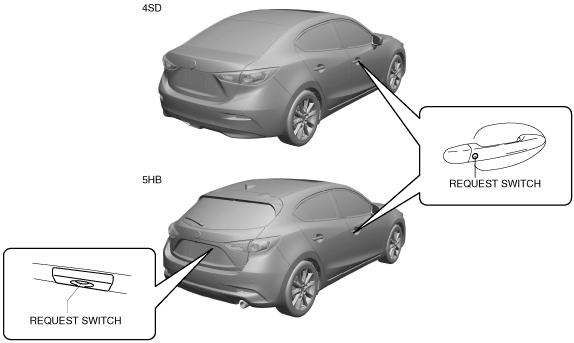

• Installed on the outer handle of the driver-side/passenger side front door and liftgate garnish (5HB).

• While the request switch is pressed, the switch turns on (contact point: closed).

am3zzn00006067

Fail-safe

• Function not equipped.
