REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400510200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

3.  Remove service hole cover No. 1 in the direction of the arrow shown in the figure.

Caution

•   When removing service hole cover No.1, remove it while gradually stripping the butyl rubber. Otherwise service hole cover No.1 may be deformed.

am3uuw00010007

4.  Remove the service hole cover.

am3uuw00010008

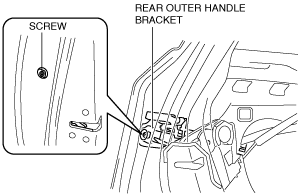

5.  Loosen the screw from the rear outer handle bracket.

am3uuw00010009

Note

•  The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

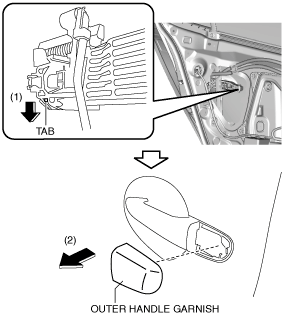

6.  While pressing the rear outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the rear outer handle bracket from the outer handle garnish.

am3uuw00010010

7.  Remove the outer handle garnish from the rear outer handle bracket.

8.  While pulling the rear outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the rear outer handle in the direction of arrow (2) to detach the rear outer handle bracket pin from the rear outer handle.

am3zzw00020242

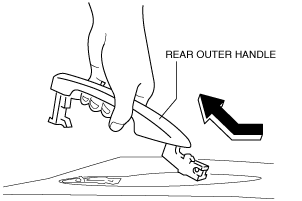

9.  Remove the rear outer handle in the direction of the arrow shown in the figure.

am3uuw00010012

10.  Loosen the screw from the rear outer handle bracket.

am3uuw00010013

Note

•  The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

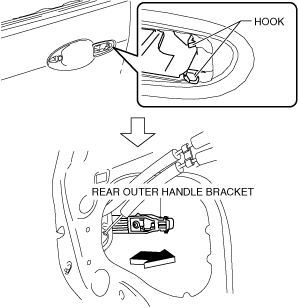

11.  Pull the rear outer handle bracket in the direction of arrow shown in the figure and detach the rear outer handle bracket hooks from the body.

am3zzw00020243

12.  Lift the rear outer handle bracket in the direction of arrow shown in the figure to pull the rod out of the rod holder. (See Rear Outer Handle Bracket Installation Note.)

am3zzw00020244

13.  Remove the rear outer handle bracket.

14.  Remove the handle seat from the body.

am3uuw00010016

15.  Install in the reverse order of removal.

Rear Outer Handle Bracket Installation Note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

am3uuw00010017
