REAR DOOR LOCK ACTUATOR INSPECTION

id091400512000

1. Fully lower the rear door glass.

2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3. Remove the following parts:

(1) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2) Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(3) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4) Rear power window motor (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

(5) Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(6) Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(7) Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4. Apply battery positive voltage and connect the ground to the rear door lock actuator terminals as indicated in the table below and verify the operation condition.

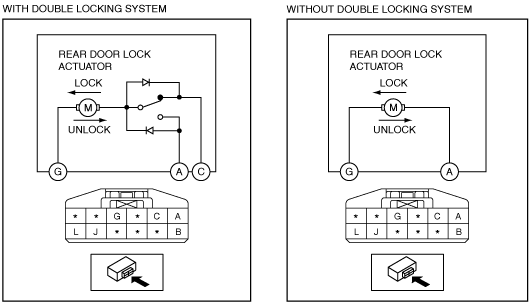

am3zzw00013737

With double locking system

B+ Terminal	Ground Terminal	Operation
C	G	Lock
A	G	Double lock
G	A, C	Unlock

Without double locking system

B+ Terminal	Ground Terminal	Operation
A	G	Lock
G	A	Unlock

• If not as indicated in the table, replace the rear door latch and lock actuator.
