DOOR LOCK SWITCH INSPECTION

id091400518700

With retractable outer mirror

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the door lock switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

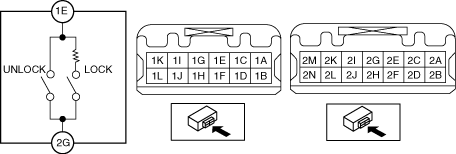

3.  Verify that the continuity is as indicated in the table.

am3zzw00019398

am3zzw00019399
