GLASS PANEL REMOVAL/INSTALLATION

id091500800500

1.  Fully open the sunshade.

2.  Fully close the glass panel.

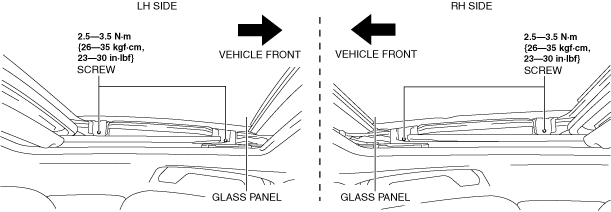

3.  Remove the screws.

am3zzw00020005

4.  Remove the glass panel in the direction of arrow (1) from sunroof unit.

am3zzw00020006

5.  Move the glass panel in the order of arrows (2) and (3) shown in the figure and remove it from the cabin.

6.  Peel the weatherstrip off the glass panel. (See Weatherstrip Installation Note.)

7.  Install in the reverse order of removal.

Weatherstrip Installation Note

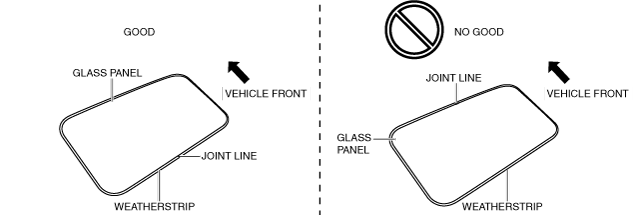

1.  Install the weatherstrip to the glass panel with the joint part of the weatherstrip assembled to the vehicle rear side.

am3zzw00020007
