SUNROOF UNIT DISASSEMBLY/ASSEMBLY

id091500800800

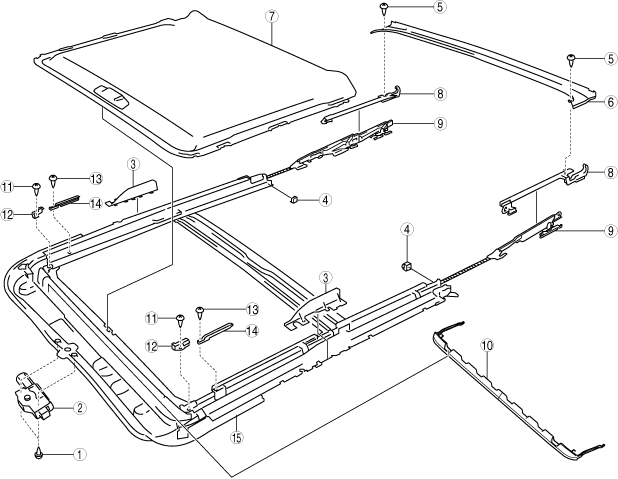

1.  Disassemble in the order indicated in the table.

am3zzw00020010

1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Screw
6	Drip rail
7	Sunshade (See Sunshade Disassembly Note.)
8	Front guide (See Front Guide Disassembly Note.)
9	Decoration link (See Decoration Link Assembly Note.)
10	Deflector
11	Screw
12	Front stopper
13	Screw
14	Set plate
15	Sunroof frame

2.  Assemble in the reverse order of disassembly.

Sunshade Disassembly Note

1.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the sunshade.

am3zzw00020011

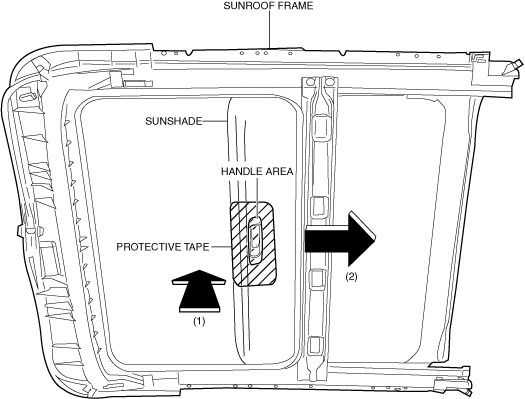

2.  Pull the sunshade in the directions of the arrows in the order of (1), (2) and remove it.

Caution

•  The sunshade may contact the sunroof frame and the handle area may be damaged. Remove the sunshade by sliding it in the direction of arrow (2) shown in the figure while lifting it in the direction of arrow (1).

am3zzw00020012

Front Guide Disassembly Note

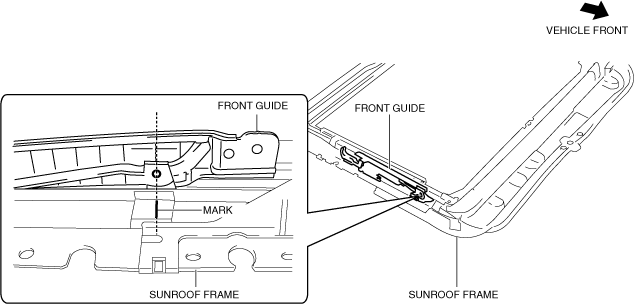

1.  Perform mark the position shown in the figure for correct positioning.

Caution

•  If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.

am3zzw00020013

Decoration Link Assembly Note

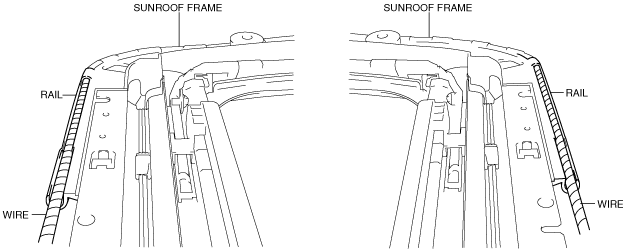

1.  To prevent the wire shown in the figure from coming off the rail, install while aligning the wire in the rail.

ac5wzw00001513
