AERODYNAMIC


id091600010400

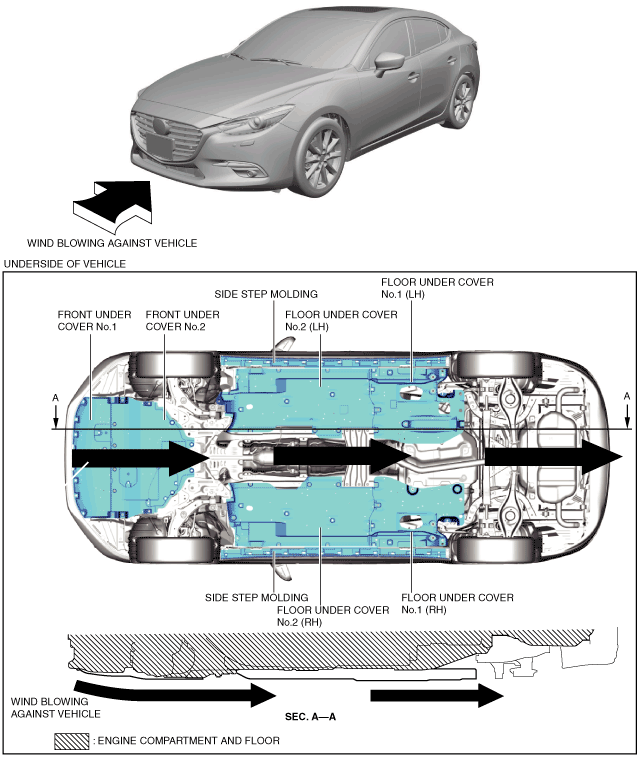

Purpose, Function

•  Undercovers have been adopted which flatten out the irregularities on the underside of the engine compartment and floor to rectify wind flowing under the vehicle while the vehicle is being driven.
am3zzn00006027

Construction

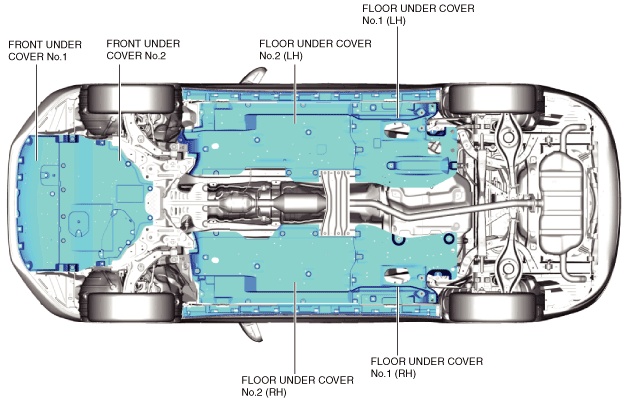

•  The following 4 types of undercovers are equipped.
―  Front undercover No.1
―  Front undercover No.2
―  Floor under cover No.1
―  Floor under cover No.2
am3zzn00006028

Fail-safe

•  Function not equipped.
