SAIL GARNISH REMOVAL/INSTALLATION

id091600451200

1.  Fully open the front door glass.

2.  Insert a remover tool, move it in the direction of the arrow shown in the figure, and remove the clip.

am3zzw00020673

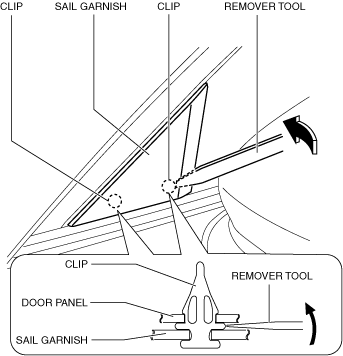

3.  Insert a remover tool, move it in the direction of the arrow shown in the figure, remove the clips, and remove the sail garnish.

am3zzw00020674

4.  Install in the reverse order of removal.
