RADIATOR GRILLE DISASSEMBLY/ASSEMBLY
id091600460100

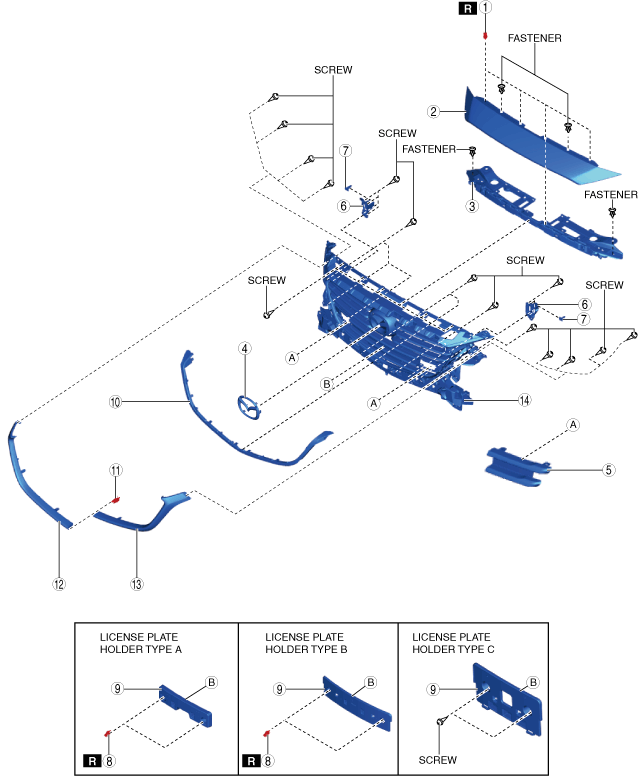

Radiator Grille Type A
1. Disassemble in the order indicated in the table.
am3zzw00020334
|
|
1
|
Rivet A
(See Rivet Removal Note.)
|
|
2
|
Front bumper upper face
|
|
3
|
Grille bracket
|
|
4
|
Mascot
|
|
5
|
Bracket
|
|
6
|
Locator pin bracket
|
|
7
|
Locator pin
|
|
8
|
Rivet B
(See Rivet Removal Note.)
|
|
9
|
License plate holder
|
|
10
|
Bumper protector
|
|
11
|
Clip
(See Clip Removal Note.)
|
|
12
|
Grille lower molding (RH)
|
|
13
|
Grille lower molding (LH)
|
|
14
|
Radiator grille reinforcement
|
2. Assemble in the reverse order of disassembly.

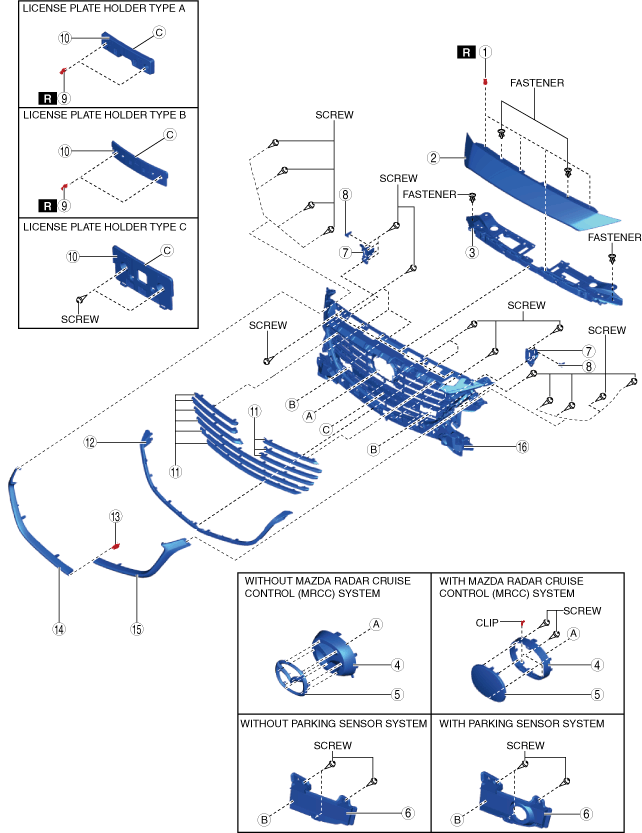

Radiator Grille Type B
1. Disassemble in the order indicated in the table.
am3zzw00020335
|
|
1
|
Rivet A
(See Rivet Removal Note.)
|
|
2
|
Front bumper upper face
|
|
3
|
Grille bracket
|
|
4
|
Mascot base
|
|
5
|
Mascot
|
|
6
|
Bracket
|
|
7
|
Locator pin bracket
|
|
8
|
Locator pin
|
|
9
|
Rivet B
(See Rivet Removal Note.)
|
|
10
|
License plate holder
|
|
11
|
Grille garnish
|
|
12
|
Bumper protector
|
|
13
|
Clip
(See Clip Removal Note.)
|
|
14
|
Grille lower molding (RH)
|
|
15
|
Grille lower molding (LH)
|
|
16
|
Radiator grille reinforcement
|
Rivet Removal Note

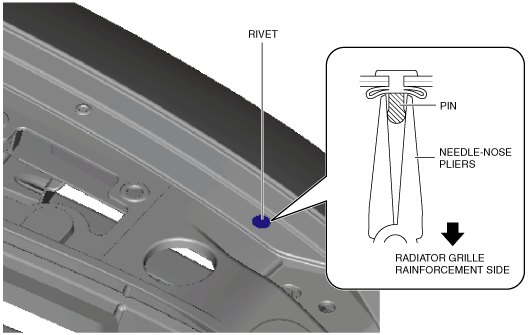

1. Secure the rivet pin from the radiator grille reinforcement side using needle-nose pliers.
am3uuw00011727
|

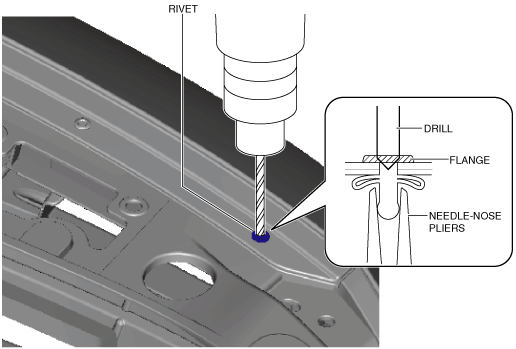

2. Remove the rivet flange using a drill and remove the rivet.
am3zzw00018862
|
3. Remove any rivet shavings from the front bumper upper face and the radiator grille reinforcement.
Clip Removal Note
1. Open the clip in the direction of arrows (1), remove it in the direction of arrow (2).
am3zzw00020675
|
