MUDGUARD REMOVAL/INSTALLATION

id091600467600

Front Mudguard

1.  Remove the front splash shield No.2. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

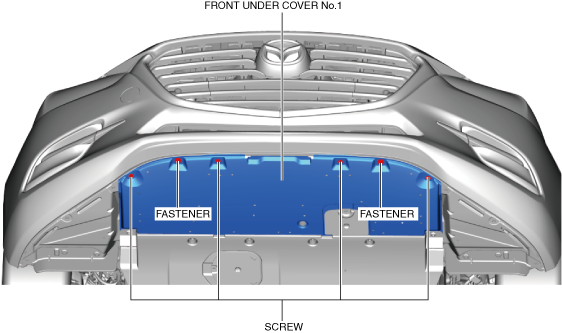

2.  Remove the screws.

am3zzw00018823

3.  Remove the fasteners.

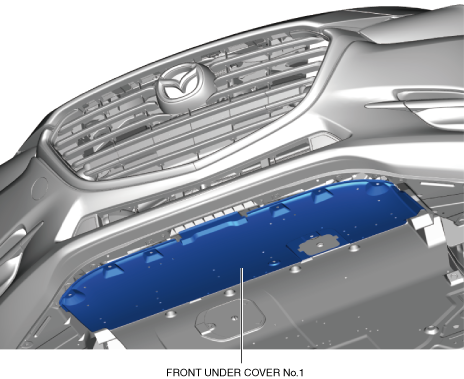

4.  Partially peel back the front under cover No.1.

am3zzw00018824

5.  Remove the screws.

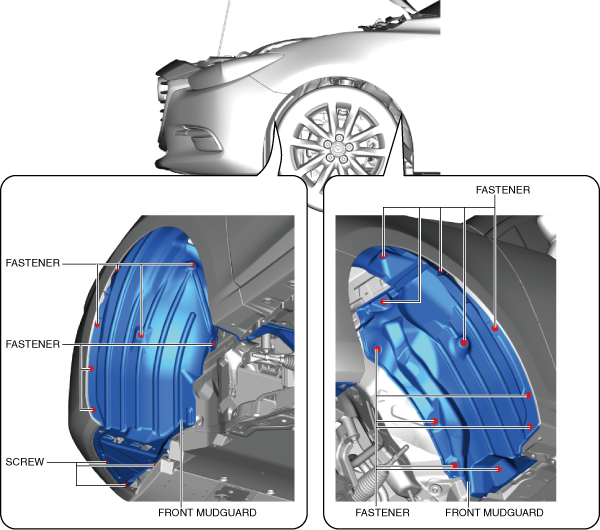

am3zzw00018825

6.  Remove the fasteners.

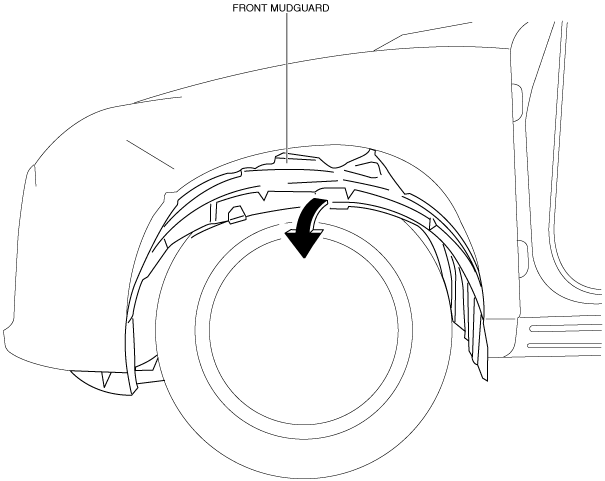

7.  Remove the front mudguard in the direction of the arrow shown in the figure.

am3uuw00011730

8.  Install in the reverse order of removal.

Rear Mudguard

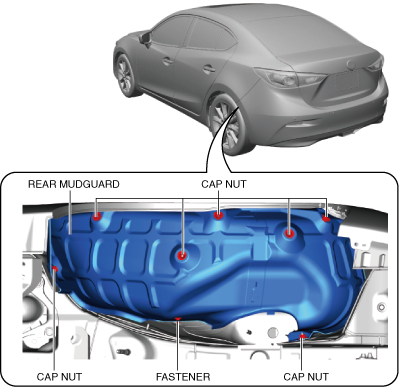

1.  Remove the fasteners.

LH

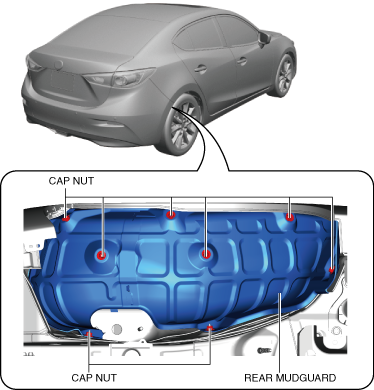

am3zzw00018826

RH

am3zzw00018827

2.  Remove the cap nuts.

3.  Remove the rear mudguard in the direction of the arrow shown in the figure.

am3uuw00011733

4.  Install in the reverse order of removal.
